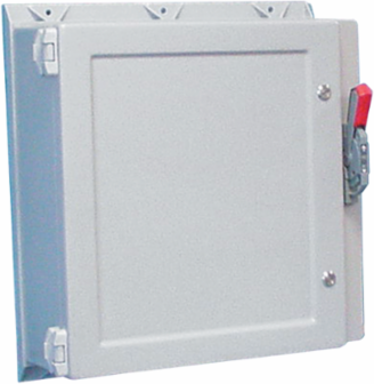

nVent Hoffman A30HS2412GQRLP Fiberglass Disconnect Enclosure 30.25x24.25x12 Inch NEMA 4X IP66
- MPN: A30HS2412GQRLP
- UPC: 783510132378
- PPN: HOF-A30HS2412GQRLP
- UNSPSC: 39121324
CAD
$3321.23
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Fiberglass Disconnect Enclosure is an effective and economical enclosure for corrosive environments. This Fiberglass Disconnect Type 4X, A30HS2412GQRLP item measures 30.25x24.25x12.00 inches with a material of Fiberglass colored Lt Gray.
Features
- Fiberglass-reinforced material has excellent temperature and chemical resistance qualities and exhibits outstanding physical properties
- Seams are sealed; no holes or knockouts
- Seamless foam-in-place gasket assures water-tight and dust-tight seal
- Fiberglass material is easily drilled, filed or sawed
- Hinges are fiberglass reinforced polyester
- Doors are secured with Type 304 stainless steel slotted quarter-turn latches
- Data pocket is high-impact thermoplastic
- Copper flashed steel collar studs for mounting optional panels and terminal block kits
- Holes provided in body for mounting disconnect operating handle and operating mechanism; disconnect operating handle not included
- Internal grounding provisions for quarter-turn latches
Documentation & Downloads
Specifications
Key Specifications
- BABA
- Yes, BABA Compliant
- Width (W)
- 616
- Protection Rating
- NEMA Type 4X
- Color
- Light Gray
- Thickness (T)
- 3
- Latch Quantity
- 2
- Weight
- 46
- Size
- 30.25x24.25x12.00 in
Height (H)768
Depth (D)305
FinishSmooth Matte
Color CodeRAL 7035
Mounting (G x H)812 x 457
IP RatingIP66
MaterialFiberglass
NEMA Rating4X Watertight, corrosion-resistant
