Nvent Hoffman

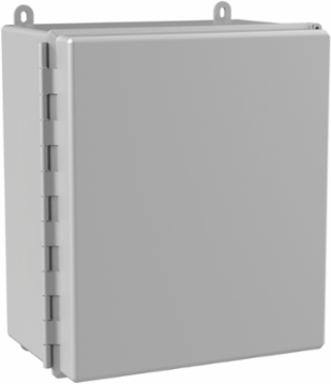

Nvent Hoffman A14128CHSCFG Continuous Hinge Screw-Cover Enclosure 4X, 14x12x8 Inch, Fiberglass, IP66

Continuous Hinge Screw-Cover Enclosure 4X, 14x12x8 Inch, Fiberglass, IP66
  • MPN: A14128CHSCFG
  • UPC: 783510297800
  • PPN: HOF-A14128CHSCFG
  • UNSPSC: 39121324

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$306.92/ EA

Description

Continuous Hinge Fiberglass Enclosures have secure seal for durability in corrosive environments. This Continuous Hinge Screw-Cover Enclosure 4X, A14128CHSCFG item measures 14x12x8inch with material Fiberglass color Light Gray.

Features

  • Compression-molded fiberglass has outstanding chemical- and temperature-resistance qualities and exhibits excellent weatherability and physical properties
  • Fiberglass is easily punched, drilled, filed or sawed
  • Gasket assures water-tight and dust-tight seal
  • Polyester mounting brackets and stainless steel attachment screws are provided with each enclosure
  • Scratch-resistant polycarbonate windows are permanently bonded in place
  • Molded-in-place threaded brass inserts and plated steel screws are provided for mounting optional panels and terminal block kits
  • Removable hinged cover attached to body with Type 316 stainless steel hinge pin
  • Screw-cover enclosures are secured with two captivated Type 316 stainless steel slotted cover screws
  • Enclosures with quick-release latches have corrosion-resistant polyester latches located in corners that provide unobstructed access to enclosure
  • Hinge pin and bail are corrosion-resistant Type 316 stainless steel
  • Padlock provisions included
  • Material is halogen-free

Specifications

Specifications

BABA
Yes, BABA Compliant
Width (W)
305
Protection Rating
NEMA Type 12
Color
Light Gray
Thickness (T)
4
Mounting (G x H)
379 x 254
Weight
9
Material
Fiberglass
NEMA Rating
4X Watertight, corrosion-resistant
Height (H)356
Depth (D)203
FinishSmooth Matte
Color CodeRAL 7035
Overall Dimensions (L x W)370 x 319
IP RatingIP66
Cover StyleSolid Screw
Size14.00x12.00x8.00 in
