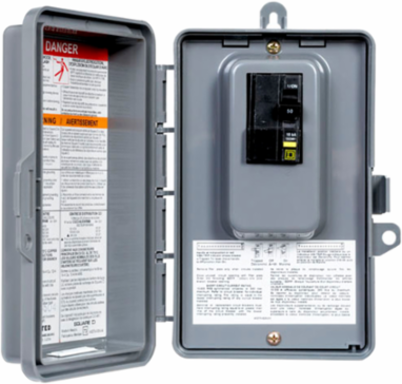

Schneider Electric CQOE250GFINM Enclosed Circuit Breaker 50A, 2 Pole, NEMA 3R, Non-Metallic
- MPN: CQOE250GFINM
- UPC: 785901293316
- PPN: SCH-CQOE250GFINM
CAD
$260.77
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Enclosed Devices are designed for reliability and safety. Options Available : Indoor NEMA type 1 and outdoor NEMA type 3R. Enclosed Devices provide an easy installation for residential and commercial air conditioning systems and other single phase applications. Metallic and non-metallic enclosure options are available as well. This enclosed circuit breaker is 2 pole and 50A. It is rated at NEMA 3R and has ground fault protection. The enclosure provided is nonmetallic. This device is used in spa systems.
Features
- Shipped with a premium Square DTM QOTM 50-Amp, 2-pole ground fault circuit interrupter factory-installed, this complete spa pack fulfills strict National Electrical Code (NEC) and Canadian Electrical Code (CEC) safety requirements for wet-area power distribution. The system actively monitors for microscopic current leaks, immediately cutting power to protect residential users and commercial guests from dangerous shock hazards.
- Built with a rugged, rainproof NEMA 3R outdoor rating, this enclosed unit keeps its internal electrical connections completely bone-dry during heavy downpours, sleet, and freezing winter weather. The corrosion-resistant shell ensures absolute structural integrity over years of exterior exposure, making it the ideal choice for unprotected installation right alongside your pool deck, patio wall, or exterior equipment pad.
- Engineered with a unique side-hinging cover design, this enclosure offers wide-open internal workspace access without a heavy vertical door continually dropping down on your hands during terminal wiring. Paired with extended, pre-drilled exterior mounting brackets, it allows field installers to align fasteners perfectly with mortar joints or structural wall studs for an ultra-fast, rock-solid installation
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
Depth73 mm
Complementary Attributes
- Line Rated Current
- 50 A
Important Information Attributes
- Persona Type Ids
- EU, EUA, LC, SC
- Carbon Footprint Of The Distribution Phase [A4]
- 0.3870508929, 0.4 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.0009034675, 0 kg CO2 eq.
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- 0.1 kg CO2 eq., 0.087341
- Local Publishable Date
- 2025-11-13
- Stocking Flag
- Y
- Weee Scope
- In
- Scope Perimeter
- Outside of Europe
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- With Recycled Cardboard
- No
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 2
- Function Option
- Standard
- Market Segmentation
- Residential
- Box Number
- 1NM
- Enclosure Type
- enclosure
- Load Center Type
- main breaker
- Product Availability
- Stock - Normally stocked in distribution facility
- Range Of Product
- QO
- Software Version
- EIME v5.9.4
- Total Lifecycle Carbon Footprint
- 9 kg CO2 eq.
- Pep Code
- ENVPEP2212001EN
- Pep Verification Date
- 2023-08-01
- Psr Version
- PSR-0005-ed2-EN-2016 03 29
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime In Y
- 20
- Energy Model - Installation [A5]
- Electricity mix; AC; consumption mix, at consumer; 120V; US
- Energy Model - End Of Life [C1-c4]
- Electricity mix; AC; consumption mix, at consumer; 120V; US
- Height Nominal
- 223 mm
- Certificate Agency
- cULus
- Package Weight(Lbs)
- 1.093 kg
- Warranty (In Months)
- 18
- Depletion Of Abiotic Resources - Fossil Fuels (Mj) Operational Energy Use [B6]
- 1.0634
- Total Use Of Primary Energy During The Life Cycle (Mj) Operational Energy Use [B6]
- 1.1758
- Water Pollution (M3) Operational Energy Use [B6]
- 4.3059
Persona Type NamesEnd User, Consumer, Contractor, Electrician
Carbon Footprint Of The End-of-life Phase [C1 To C4]0.1 kg CO2 eq., 0.120050604
Carbon Footprint Of The Manufacturing Phase [A1 To A3]8 kg CO2 eq., 8.2625220588
Local Data StatusPublishable
Return IndicatorY
Stock Policy1
Weee Product Category5
Eoli Availability DisplayNo need of specific recycling operations
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeYes
Rohs Eur Conformity Date2532
China Rohs In ScopeNo
Without Single Use PlasticNo
Tier Id2
Function Option IdSTANDARD
Market Segmentation IdRESIDENTIAL
Product Kit IdentifierN
Enclosure Materialnon-metallic
Energy Efficiency OptimizedFalse
Phase1 phase
Product Or Component Typeenclosed circuit breaker
ReturnabilityYes
Sustainable PackagingNo
Wiring Configuration3-wire
Database Version2022-01
Pcr VersionPCR-ed3-EN-2015 04 02
Type Of Verification For The PepIndependent external review
Functional-unit DescriptionProtect persons during 20 years against direct contact with live parts and allow grouping monitoring, control and protection devices in a single enclosure or a cabinet having the following dimensions 858mm×361mm×95mm, comply with UL 67 and CSA22.2 with an available offer:& 10•Suitable for use on 120/240 Vac and 48 Vdc systems& 10•Rated 30 to 400 amps 2 to 60 circuits& 10•3/4" circuit breaker width& 10•Single and three phase
Functional-unit Unitunit
Energy Model - Manufacturing [A1-a3]Energy model used: Lexington
Energy Model - Use [B6]Electricity mix; AC; consumption mix, at consumer; 120V; US
Recyclability Potential In %88
Width Nominal166 mm
Nbr. Of Units In Pkg.1
Take-backNo
Air Pollution (M3) Operational Energy Use [B6]7.4172
Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]1.1052
Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]1.1052
Customs Code8536200040
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
- Recycled Metal Content At Cr Level
- 0 %
- Carbon Footprint
- 8.8578680232
- Eu Rohs Directive
- Compliant By Exemption
- Packaging Without Single Use Plastic
- No
- Pep Code
- ENVPEP2212001EN
- Pcr Version
- PCR-ed3-EN-2015 04 02
- Type Of Verification For The Pep
- Independent external review
Take BackNo
Mercury FreeYes
Environmental DisclosureENVPEP2212001EN
Packaging Made With Recycled CardboardNo
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep Verification Date2023-08-01
Psr VersionPSR-0005-ed2-EN-2016 03 29
General Attributes
- Phase
- 1 phase
- Range Of Product
- QO
Product Or Component Typeenclosed circuit breaker
