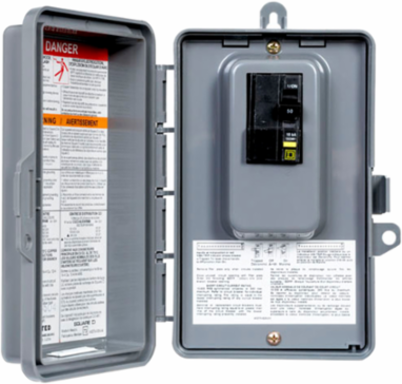

Schneider Electric CQOE260GFINM Enclosed Circuit Breaker 60A 2-Pole NEMA 3R Non-Metallic 120/240V
- MPN: CQOE260GFINM
- UPC: 785901541455
- PPN: SCH-CQOE260GFINM
CAD
$287.82
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Enclosed Devices are designed for reliability and safety. Indoor NEMA type 1 and outdoor NEMA type 3R options are available. Enclosed Devices provide an easy installation for residential and commercial air conditioning systems and other single phase applications. Metallic and non-metallic enclosure options are available as well. This enclosed circuit breaker is 2 pole and 60A. It is rated at NEMA 3R and has ground fault protection. The enclosure provided is nonmetallic. It is used in 120/240 V spa systems.
Features
- Encased in a rugged NEMA 3R non-metallic enclosure, this "Spa Pack" is specifically designed to withstand rain, sleet, and snow without corroding or rusting. This makes it the ideal safety solution for high-moisture environments, providing a durable, weather-tight housing for your pool, hot tub, or outdoor sauna electrical connections.
- This unit comes pre-installed with a 60-Amp, 2-pole QO Ground Fault Circuit Interrupter (GFCI) breaker, which provides the critical Class A protection required by the National Electrical Code (NEC) for water-adjacent installations. It is engineered to detect minute current leaks as small as 5mA, instantly cutting power to prevent lethal electrical shocks and ensuring your spa remains a safe environment for your family.
- The enclosure features a convenient side-hinged door that stays open during maintenance and a padlockable latch to prevent tampering or accidental activation by children. This added layer of security ensures your outdoor power source remains under your control, protecting your equipment from unauthorized use and ensuring the system is safely locked out during servicing.
- The streamlined, space-saving design provides a dedicated two-space, four-circuit capacity in a footprint much smaller than a standard sub-panel. This allows for a clean, professional-looking installation on exterior walls or posts, providing high-capacity 120/240V power distribution exactly where you need it without an oversized, unsightly metal box.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Mexico |
|---|
| Depth | 73 mm |
|---|
Complementary Attributes
| Line Rated Current | 60 A |
|---|
Important Information Attributes
| Persona Type Ids | EU, EUA, LC, SC |
|---|---|
| Carbon Footprint Of The Distribution Phase [A4] | 0.388065, 0.4 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase [A5] | 0.0009058347, 0 kg CO2 eq. |
| Carbon Footprint Of The Use Phase [B2 B3 B4 B6] | 0.1 kg CO2 eq., 0.087341 |
| Local Publishable Date | 2025-11-18 |
| Stocking Flag | N |
| Weee Scope | In |
| Scope Perimeter | Outside of Europe |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant By Exemption |
| Rohs Eur Full Compliance Status | Compliant By Exemption |
| With Recycled Cardboard | No |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 2 |
| Function Option | Standard |
| Market Segmentation | Residential |
| Box Number | 1NM |
| Enclosure Type | enclosure |
| Load Center Type | main breaker |
| Product Availability | Stock - Normally stocked in distribution facility |
| Range Of Product | QO |
| Software Version | EIME v5.9.4 |
| Total Lifecycle Carbon Footprint | 9 kg CO2 eq. |
| Pep Code | ENVPEP2212001EN |
| Pep Verification Date | 2023-08-01 |
| Psr Version | PSR-0005-ed2-EN-2016 03 29 |
| Data Source | extrapolated product |
| Functional-unit Quantity | 1 |
| Reference Lifetime In Y | 20 |
| Energy Model - Installation [A5] | Electricity mix; AC; consumption mix, at consumer; 120V; US |
| Energy Model - End Of Life [C1-c4] | Electricity mix; AC; consumption mix, at consumer; 120V; US |
| Height Nominal | 223 mm |
| Certificate Agency | cULus |
| Package Weight(Lbs) | 1.148 kg |
| Warranty (In Months) | 18 |
| Depletion Of Abiotic Resources - Fossil Fuels (Mj) Operational Energy Use [B6] | 1.0634 |
| Total Use Of Primary Energy During The Life Cycle (Mj) Operational Energy Use [B6] | 1.1758 |
| Water Pollution (M3) Manufacturing [A1-a3] | 394.83 |
| Customs Code | 8536200040 |
| Persona Type Names | End User, Consumer, Contractor, Electrician |
|---|---|
| Carbon Footprint Of The End-of-life Phase [C1 To C4] | 0.1 kg CO2 eq., 0.1203651471 |
| Carbon Footprint Of The Manufacturing Phase [A1 To A3] | 8 kg CO2 eq., 8.2841705882 |
| Local Data Status | Publishable |
| Return Indicator | Y |
| Stock Policy | 2 |
| Weee Product Category | 5 |
| Eoli Availability Display | No need of specific recycling operations |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | Yes |
| Rohs Eur Conformity Date | 2532 |
| China Rohs In Scope | No |
| Without Single Use Plastic | No |
| Tier Id | 2 |
| Function Option Id | STANDARD |
| Market Segmentation Id | RESIDENTIAL |
| Product Kit Identifier | N |
| Enclosure Material | non-metallic |
| Energy Efficiency Optimized | False |
| Phase | 1 phase |
| Product Or Component Type | enclosed circuit breaker |
| Returnability | Yes |
| Sustainable Packaging | No |
| Wiring Configuration | 3-wire |
| Database Version | 2022-01 |
| Pcr Version | PCR-ed3-EN-2015 04 02 |
| Type Of Verification For The Pep | Independent external review |
| Functional-unit Description | Protect persons during 20 years against direct contact with live parts and allow grouping monitoring, control and protection devices in a single enclosure or a cabinet having the following dimensions 858mm×361mm×95mm, comply with UL 67 and CSA22.2 with an available offer:& 10•Suitable for use on 120/240 Vac and 48 Vdc systems& 10•Rated 30 to 400 amps 2 to 60 circuits& 10•3/4" circuit breaker width& 10•Single and three phase |
| Functional-unit Unit | unit |
| Energy Model - Manufacturing [A1-a3] | Energy model used: Lexington |
| Energy Model - Use [B6] | Electricity mix; AC; consumption mix, at consumer; 120V; US |
| Recyclability Potential In % | 88 |
| Width Nominal | 166 mm |
| Nbr. Of Units In Pkg. | 1 |
| Take-back | No |
| Air Pollution (M3) Operational Energy Use [B6] | 7.4172 |
| Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6] | 1.1052 |
| Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6] | 1.1052 |
| Water Pollution (M3) Operational Energy Use [B6] | 4.3059 |
Environment Attributes Main
| China Rohs Regulation | Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information. |
|---|---|
| Recycled Metal Content At Cr Level | 0 % |
| Carbon Footprint | 8.88084757 |
| Eu Rohs Directive | Compliant By Exemption |
| Packaging Without Single Use Plastic | No |
| Pep Code | ENVPEP2212001EN |
| Pcr Version | PCR-ed3-EN-2015 04 02 |
| Type Of Verification For The Pep | Independent external review |
| Take Back | No |
|---|---|
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP2212001EN |
| Packaging Made With Recycled Cardboard | No |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Pep Verification Date | 2023-08-01 |
| Psr Version | PSR-0005-ed2-EN-2016 03 29 |
General Attributes
| Phase | 1 phase |
|---|---|
| Range Of Product | QO |
| Product Or Component Type | enclosed circuit breaker |
|---|
