nVent Hoffman A30R248NK Screw-Cover Drip-Shield Type 3R no Knockouts, 30x24x8, Gray, Steel
- MPN: A30R248NK
- UPC: 783510135225
- PPN: HOF-A30R248NK
- UNSPSC: 39121303
CAD
$575.08
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description

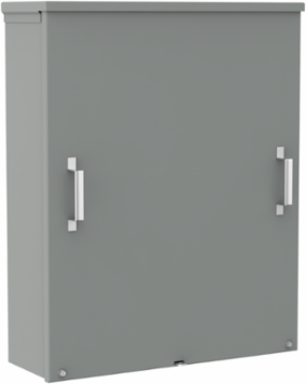

Drip-Shield Screw-Cover, Type 3R is used as a wiring or junction box in outdoor applications. This Screw-Cover Drip-Shield Type 3R no Knockouts, A30R248NK item measures 30x24x8 inches with a material of Steel colored Gray.
Features
- Drip shield top and seam-free sides, front, and back protect from rain, snow, or sleet
- Slip-on removable cover fastened with plated steel screws along bottom edge
- Handles on larger sizes (see table)
- Embossed mounting holes on back of enclosure
- Knockouts in bottom of 16 and 14 gauge enclosures
- Provision for padlocking
- No gasketing
- Enclosures are finished with paint over plated surfaces
- Top and bottom thickness gauge is the same as the body thickness gauge unless otherwise noted in table
Documentation & Downloads
Specifications
Key Specifications
- BABA
- Contact Manufacturer
- Width (W)
- 610
- Protection Rating
- NEMA Type 3R
- Color
- Gray
- Body Thickness
- 1.9
- Knockouts Included
- No
- Mounting (H)
- 330
- Mounting (J)
- 28
- Weight
- 53.8
- Size
- 30.00x24.00x8.00 in
Height (H)762
Depth (D)203
FinishGalvanized
Color CodeANSI 61
Door Thickness1.9
NEMA Rating3R Weather-resistant, except dust
Body StyleC*
IP RatingIP32
MaterialSteel
KnockoutsNo
