Inspection Window Cover, 11.89x7.32x1.77 Inch, Fiberglass, Smooth Matte
nVent Hoffman

nVent Hoffman A31-DTCOVERLG Inspection Window Cover, 11.89x7.32x1.77 Inch, Fiberglass, Smooth Matte

  • MPN: A31-DTCOVERLG
  • UPC: 635394036214
  • PPN: HOF-A31-DTCOVERLG
  • UNSPSC: 39121324

CAD

$183.08

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Company Stock:

0

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Description

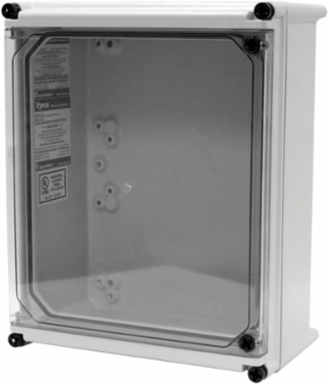

APO DT Covers are designed for use as inspection windows in highly corrosive environments. This APO DT Trnsp Hngd Scr Cvr Insp Wdw Type 4X, A31-DTCOVERLG item measures 11.89x7.32x1.77 with material Fiberglass finish Smooth Matte.

Features

  • Available sized from 12 x 7 to 24 x 12 (H x W)
  • DT Covers are maintenance free and corrosion resistant
  • Frames are made from hot compression molded halogen free, self extinguishing fiberglass reinforced polyester (FRP) that can withstand continuous temperatures from -58 F to 302 F (-50 C to 150 C)
  • Inspection windows are made from transparent polycarbonate that can withstand continuous temperatures to 248 F (120 C)
  • Included thumb screw inserts allow quick window opening for access to interior component
  • Gaskets are made from continuously poured polyurethane foam

Documentation & Downloads

Specifications

Additional

Operating Temperature Range
-58 F to 302 F (-50 C to 150 C) continuous for FRP, up to 248 F (120 C) continuous for polycarbonate
Height
302 mm
Weight
2.05 lb
Finish
Smooth Matte
Compliance
UL Listed Types 3, 3R, 4, 4X, 12 & 13; CSA 3, 3R, 4, 4X, 12 & 13; IP67; IK10
Window Material
Polycarbonate
Width186 mm
Depth45 mm
MaterialFiberglass reinforced polyester (FRP), Polycarbonate
ColorLight Gray (RAL 7035)
Gasket MaterialPolyurethane foam
