APO DT Transport Hanging Scr Cover Inspection Window 19.20x11.89 Inch Fiberglass
nVent Hoffman

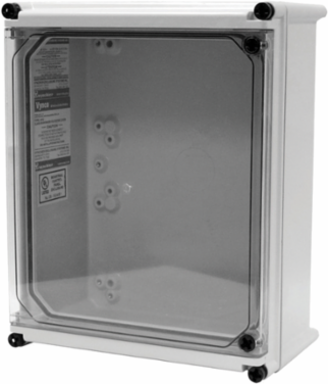

nVent Hoffman A51-DTCOVERKIT APO DT Transport Hanging Scr Cover Inspection Window 19.20x11.89 Inch Fiberglass

  • MPN: A51-DTCOVERKIT
  • UPC: 635394571043
  • PPN: HOF-A51-DTCOVERKIT
  • UNSPSC: 39121324

CAD

$408.15

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Company Stock:

0

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Description

APO DT Covers designed for inspection windows in corrosive environments for easy viewing and access. This APO DT Trnsp Hngd Scr Cvr Insp Wdw Blk Insrt, A51-DTCOVERKIT item measures 19.20x11.89x1.77 with material Fiberglass finish Smooth.

Features

  • Available sized from 12 x 7 to 24 x 12 (H x W)
  • DT Covers are maintenance free and corrosion resistant
  • Frames are made from hot compression molded halogen free, self extinguishing fiberglass reinforced polyester (FRP) that can withstand continuous temperatures from -58 F to 302 F (-50 C to 150 C)
  • Inspection windows are made from transparent polycarbonate that can withstand continuous temperatures to 248 F (120 C)
  • Included thumb screw inserts allow quick window opening for access to interior component
  • Gaskets are made from continuously poured polyurethane foam

Documentation & Downloads

Specifications

Additional

Operating Temperature Range
-58 F to 302 F (-50 C to 150 C) frame, up to 248 F (120 C) window
Dimensions
19.20 x 11.89 x 1.77 in
Material
Fiberglass
Finish
Smooth Matte
Depth
45 mm
Height
488 mm
BABA
Contact Manufacturer
ComplianceUL Types 3, 3R, 4, 4X, 12, 13; CSA 3, 3R, 4, 4X, 12, 13; IP67; IK10
Weight3.55 lb
Gasket MaterialPolyurethane Foam
ColorLight Gray (RAL 7035)
Width302 mm
Works WithNEMA & IEC
