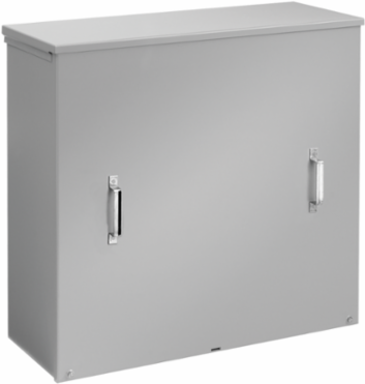

nVent Hoffman A363011CT CT Cabinet Screw-Cover Type 3R, 36 Inch x 30 Inch x 11 Inch, Gray, Steel
- MPN: A363011CT
- UPC: 783510475093
- PPN: HOF-A363011CT
- UNSPSC: 39121319
CAD
$987.54
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
CT Cabinet Type 3R provides protection and security for instrument current transformers. This CT Cabinet Screw-Cover Type 3R, A363011CT item measures 36.00x30.00x11.00 inches with a material of Steel colored Gray.
Features
- Drip shield top and seam-free sides, front and back
- Slip-on removable cover fastened with captivated plated steel screws along bottom edge
- Door handles provided
- Provisions for padlocking
- No gasketing or knockouts
- Ground lug
- Mounting studs on enclosure body
- Mounting holes on back of enclosure
Documentation & Downloads
Specifications
Key Specifications
| BABA | Contact Manufacturer |
|---|---|
| Width (W) | 762 |
| Protection Rating | NEMA Type 3R |
| Color | Gray |
| Body Thickness | 2.66 |
| IP Rating | IP32 |
| Material | Steel |
| NEMA Rating | 3R Weather-resistant, except dust |
| Height (H) | 914 |
|---|---|
| Depth (D) | 279 |
| Finish | Powder Coated |
| Color Code | ANSI 61 |
| Door Thickness | 2.66 |
| Weight | 114 |
| Size | 36.00x30.00x11.00 in |
