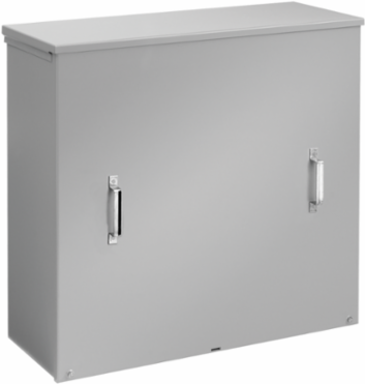

nVent Hoffman A363611CT CT Cabinet Type 3R, 36 Inch x 36 Inch x 11 Inch, Gray Steel
- MPN: A363611CT
- UPC: 783510475192
- PPN: HOF-A363611CT
- UNSPSC: 39121319
CAD
$1037.08
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
CT Cabinet Type 3R provides protection and security for instrument current transformers. This CT Cabinet Screw-Cover Type 3R, A363611CT item measures 36.00x36.00x11.00 inches with a material of Steel colored Gray.
Features
- Drip shield top and seam-free sides, front and back
- Slip-on removable cover fastened with captivated plated steel screws along bottom edge
- Door handles provided
- Provisions for padlocking
- No gasketing or knockouts
- Ground lug
- Mounting studs on enclosure body
- Mounting holes on back of enclosure
Documentation & Downloads
Specifications
Key Specifications
- BABA
- Contact Manufacturer
- Width (W)
- 914
- Protection Rating
- NEMA Type 3R
- Color
- Gray
- Body Thickness
- 2.66
- IP Rating
- IP32
- Material
- Steel
- NEMA Rating
- 3R Weather-resistant, except dust
Height (H)914
Depth (D)279
FinishPowder Coated
Color CodeANSI 61
Door Thickness2.66
Weight120
Size36.00x36.00x11.00 in
