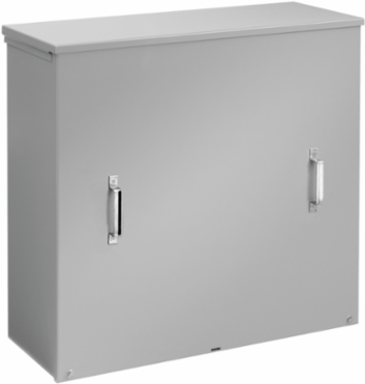

nVent Hoffman A363614CTCJ CT Cabinet Screw-Cover Foot-Mount Panel Type 3R, 36.00x36.00x14.00, Gray, Steel
nVent Hoffman A363614CTCJ CT Cabinet Screw-Cover Foot-Mount Panel Type 3R, 36.00x36.00x14.00, Gray, Steel
- MPN: A363614CTCJ
- UPC: 783510145170
- PPN: HOF-A363614CTCJ
- UNSPSC: 39121319
Spec sheet
Loading compare button...
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$1149.08/ EA
Description
CT Cabinet with Foot-Mount Panel Type 3R used for protecting instrument current transformers. This CT Cabinet Screw-Cover Foot-Mount Panel Type 3R, A363614CTCJ item measures 36.00x36.00x14.00in with a material of Steel colored Gray.
Features
- Cover with handles and captivated screws
- 12-gauge plated mounting panel
- Panel studs allow for either vertical or horizontal panel mounting
- Enclosures are finished with paint over plated surfaces
Specifications
Specifications
- BABA
- Contact Manufacturer
- Width (W)
- 914
- Protection Rating
- NEMA Type 3R
- Color Code
- ANSI 61
- IP Rating
- IP65
- Material
- Steel
- NEMA Rating
- 3R Weather-resistant, except dust
Height (H)914
Depth (D)356
ColorGray
Thickness (T)2.66
Weight151
Size36.00x36.00x14.00 in
