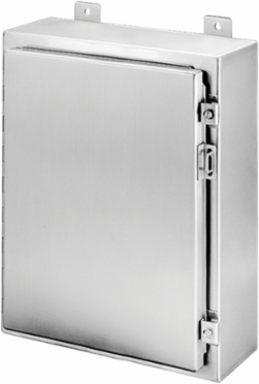

nVent Hoffman A36H3012SSLP Wallmount Hinged with NEMA Clamps Type 4X, 36x30x12, Brushed, SS304
- MPN: A36H3012SSLP
- UPC: 783510242206
- PPN: HOF-A36H3012SSLP
- UNSPSC: 39121324
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
For use in indoor and outdoor corrosive environments that require a water-tight seal. This Wallmount Hinged with NEMA Clamps Type 4X, A36H3012SSLP item measures 36x30x12 in. with a material of SS304, Brushed.
Features
- Seams continuously welded and ground smooth
- Seamless foam-in-place gasket
- Rolled lip around three sides of door
- Stainless steel door clamp assembly
- Hasp and staple for padlocking
- Door removed by pulling stainless steel continuous hinge pin
- Data pocket is high-impact thermoplastic
- Collar studs provided for mounting optional panels
- Exterior hardware on Type 316L stainless steel enclosures matches enclosure material
- Bonding provision on door; grounding stud on body
Documentation & Downloads
Specifications
Additional
- Protection Rating
- NEMA Type 12
- IP Rating
- IP66
- Height (H)
- 914 mm
- Depth (D)
- 305 mm
- Clamp Quantity
- 7
- Material
- Stainless Steel 304
- Data Pocket
- Large, High-impact thermoplastic
- Door Removal Method
- Pulling stainless steel continuous hinge pin
- Locking
- Hasp and staple for padlocking
- Installation Features
- Collar studs for mounting optional panels
NEMA Rating4X Watertight, corrosion-resistant
Size36.00x30.00x12.00 in
Width (W)762 mm
Thickness (T)1.98 mm
FinishBrushed #4
Seal TypeSeamless foam-in-place gasket
WeldingSeams continuously welded and ground smooth
Door Clamp MaterialStainless Steel
Bonding/ GroundingBonding provision on door; grounding stud on body
