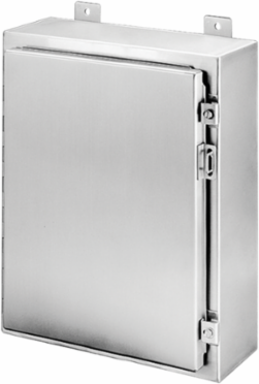

nVent Hoffman A42H3010SSLP Wallmount Hinged with NEMA Clamps Type 4X, 42x30x10, Brushed, SS304
- MPN: A42H3010SSLP
- UPC: 783510241902
- PPN: HOF-A42H3010SSLP
- UNSPSC: 39121324
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
For use in indoor and outdoor corrosive environments that require a water-tight seal. This Wallmount Hinged with NEMA Clamps Type 4X, A42H3010SSLP item measures 42x30x10 in. with a material of SS304, Brushed.
Features
- Seams continuously welded and ground smooth
- Seamless foam-in-place gasket
- Rolled lip around three sides of door
- Stainless steel door clamp assembly
- Hasp and staple for padlocking
- Door removed by pulling stainless steel continuous hinge pin
- Data pocket is high-impact thermoplastic
- Collar studs provided for mounting optional panels
- Exterior hardware on Type 316L stainless steel enclosures matches enclosure material
- Bonding provision on door; grounding stud on body
Documentation & Downloads
Specifications
Additional
- Size
- 42.00 x 30.00 x 10.00 in
- Height
- 1,067 mm
- Material
- Stainless Steel 304
- Thickness
- 1.98 mm
- NEMA Rating
- Type 4X Watertight, corrosion-resistant
- Protection Rating
- NEMA Type 12
- Clamp Quantity
- 8
- Padlocking
- Hasp and staple
- Door Removal
- By pulling stainless steel continuous hinge pin
- Door Thickness
- 1.98 mm
- Gasket
- Seamless foam-in-place
- Exterior Hardware
- Matches enclosure material (Type 316L for SS316 enclosures)
- Industry Standards
- UL 508A Listed; cUL Listed CSA C22.2 No 94; NEMA/EEMAC Types 3, 3R, 4, 4X, 12, 13; IEC 60529
Width762 mm
Depth254 mm
FinishBrushed #4
Weight99 lb
IP RatingIP66
Enclosure TypeWallmount Hinged with NEMA Clamps
Data PocketLarge high-impact thermoplastic
Door Clamp AssemblyStainless steel
Body Thickness1.98 mm
SeamsContinuously welded and ground smooth
Collar StudsProvided for mounting optional panels
Bonding ProvisionOn door; grounding stud on body
BABACompliant
