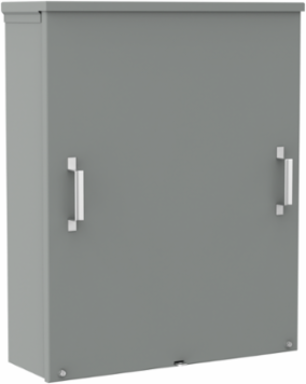

nVent Hoffman A36R3612 Screw-Cover Drip-Shield Type 3R With Knockouts, 36x36x12, Gray, Steel
- MPN: A36R3612
- UPC: 783510434403
- PPN: HOF-A36R3612
- UNSPSC: 39121303
CAD
$1306.31
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Drip-Shield Screw-Cover, Type 3R is used as a wiring or junction box in outdoor applications. This Screw-Cover Drip-Shield Type 3R With Knockouts, A36R3612 item measures 36x36x12 inches with a material of Steel colored Gray.
Features
- Drip shield top and seam-free sides, front, and back protect from rain, snow, or sleet
- Slip-on removable cover fastened with plated steel screws along bottom edge
- Handles on larger sizes (see table)
- Embossed mounting holes on back of enclosure
- Knockouts in bottom of 16 and 14 gauge enclosures
- Provision for padlocking
- No gasketing
- Enclosures are finished with paint over plated surfaces
- Top and bottom thickness gauge is the same as the body thickness gauge unless otherwise noted in table
Documentation & Downloads
Specifications
Key Specifications
- BABA
- Contact Manufacturer
- Width (W)
- 914
- Protection Rating
- NEMA Type 3R
- Color
- Gray
- Body Thickness
- 2.66
- Knockouts Included
- Yes
- NEMA Rating
- 3R Weather-resistant, except dust
- Body Style
- C**
- IP Rating
- IP32
- Material
- Steel
- Knockouts
- Yes
Height (H)914
Depth (D)305
FinishGalvanized
Color CodeANSI 61
Door Thickness2.66
Knockout PatternA-B-C-D-E-F-G-H-I
Mounting (H)838
Mounting (J)38
Weight130
Size36.00x36.00x12.00 in
