nVent Hoffman

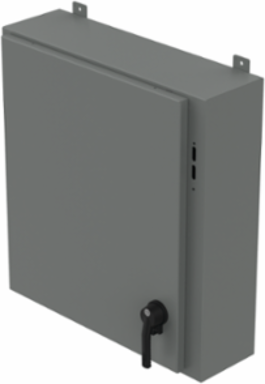

nVent Hoffman A36X1E2810 Low-Profile 1-Door Disconnect Type 12, 36.00x28.25x10.00, Gray, Steel

Low-Profile 1-Door Disconnect Type 12, 36.00x28.25x10.00, Gray, Steel
  • MPN: A36X1E2810
  • UPC: 783510127145
  • PPN: HOF-A36X1E2810
  • UNSPSC: 39121324

Spec sheet

Loading compare button...

Available to Order

Company Stock:

0

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$1506.62/ EA

Description

Heavy duty multi-bay enclosure with a lower profile to maintain line of sight in factory. This Low-Profile 1-Door Disconnect Type 12, A36X1E2810 item measures 36.00x28.25x10.00 inches with material of Steel colored Gray.

Features

  • Seams continuously welded and ground smooth
  • Body stiffeners in larger enclosures for extra rigidity
  • Body flange trough excludes liquids and contaminants
  • Heavy duty lifting eyes anchor into reinforced top on larger models
  • Removable centerposts for easy panel installation
  • Concealed, easy-to-remove hinges
  • Heavy duty latch mechanism operated by zinc die-cast padlocking defeater handle on all doors; 2-point latch on enclosures up to 36 in. (914 mm); 3-point latch on enclosures 42 in. (1067 mm) and above
  • Oil-resistant gasket
  • Removable .127-in. thick steel panels mount on collar studs
  • Master door is far right-hand door on all enclosures
  • Defeater on primary door requires a screwdriver to open
  • Preferred cutout on right flange provides mounting for most disconnect switches and circuit breakers
  • Enclosures with three to five doors have three stiffeners on rear of body

Specifications

Specifications

BABA
Contact Manufacturer
Width (W)
718
Protection Rating
NEMA Type 12
Color Code
ANSI 61
Panel Quantity
1
IP Rating
IP55
Weight
91
Size
36.00x28.25x10.00 in
Height (H)914
Depth (D)254
FinishPowder Coated
Thickness (T)1.88
Lifting Eye Quantity0
NEMA Rating12 Indoor, dust-resistant
MaterialSteel
ColorGray
