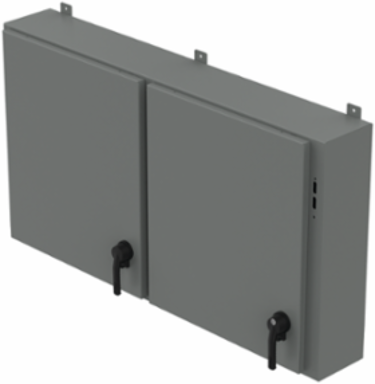

Nvent Hoffman A30X2E5410 Low-Profile Disconnect Enclosure 30 Inch x 54-1/2 Inch x 10 Inch, Gray Steel
Nvent Hoffman A30X2E5410 Low-Profile Disconnect Enclosure 30 Inch x 54-1/2 Inch x 10 Inch, Gray Steel
- MPN: A30X2E5410
- UPC: 783510127114
- PPN: HOF-A30X2E5410
- UNSPSC: 39121324
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$2716.00/ EA
Description
Heavy duty multi-bay enclosure with a lower profile to maintain line of sight in factory. This Low-Profile 2-Door Disconnect Type 12, A30X2E5410 item measures 30.00x54.50x10.00 inches with material of Steel colored Gray.
Features
- Seams continuously welded and ground smooth
- Body stiffeners in larger enclosures for extra rigidity
- Body flange trough excludes liquids and contaminants
- Heavy duty lifting eyes anchor into reinforced top on larger models
- Removable centerposts for easy panel installation
- Concealed, easy-to-remove hinges
- Heavy duty latch mechanism operated by zinc die-cast padlocking defeater handle on all doors; 2-point latch on enclosures up to 36 in. (914 mm); 3-point latch on enclosures 42 in. (1067 mm) and above
- Oil-resistant gasket
- Removable .127-in. thick steel panels mount on collar studs
- Master door is far right-hand door on all enclosures
- Defeater on master door requires a screwdriver to open
- Preferred cutout on right flange provides mounting for most disconnect switches and circuit breakers
- Enclosures with three to five doors have three stiffeners on rear of body
Specifications
Specifications
- BABA
- Contact Manufacturer
- Width (W)
- 1,384
- Protection Rating
- NEMA Type 12
- Color Code
- ANSI 61
- Body Stiffener
- 0
- IP Rating
- IP55
- Material
- Steel
- Color
- Gray
Height (H)762
Depth (D)254
FinishPowder Coated
Thickness (T)2.48972972972973
Panel Quantity1
Weight250
Size30.00x54.50x10.00 in
NEMA Rating12 Indoor, dust-resistant
