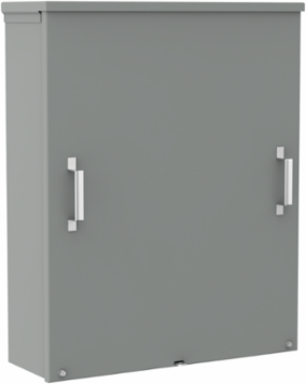

nVent Hoffman A48R368NK Screw-Cover Drip-Shield Type 3R no Knockouts, 48x36x8, Gray, Steel
nVent Hoffman A48R368NK Screw-Cover Drip-Shield Type 3R no Knockouts, 48x36x8, Gray, Steel
- MPN: A48R368NK
- UPC: 783510135232
- PPN: HOF-A48R368NK
- UNSPSC: 39121303
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$891.69/ EA
Description
Drip-Shield Screw-Cover, Type 3R is used as a wiring or junction box in outdoor applications. This Screw-Cover Drip-Shield Type 3R no Knockouts, A48R368NK item measures 48x36x8 inches with a material of Steel colored Gray.
Features
- Drip shield top and seam-free sides, front, and back protect from rain, snow, or sleet
- Slip-on removable cover fastened with plated steel screws along bottom edge
- Handles on larger sizes (see table)
- Embossed mounting holes on back of enclosure
- Knockouts in bottom of 16 and 14 gauge enclosures
- Provision for padlocking
- No gasketing
- Enclosures are finished with paint over plated surfaces
- Top and bottom thickness gauge is the same as the body thickness gauge unless otherwise noted in table
Specifications
Specifications
- BABA
- Contact Manufacturer
- Width (W)
- 914
- Protection Rating
- NEMA Type 3R
- Color
- Gray
- Body Thickness
- 2.66
- Knockouts Included
- No
- Mounting (H)
- 838
- Mounting (J)
- 38
- Weight
- 147.7
- Size
- 48.00x36.00x8.00 in
Height (H)1,219
Depth (D)203
FinishGalvanized
Color CodeANSI 61
Door Thickness2.66
NEMA Rating3R Weather-resistant, except dust
Body StyleC**
IP RatingIP32
MaterialSteel
KnockoutsNo
