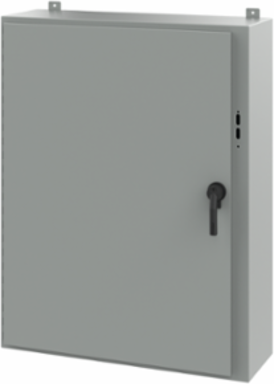

nVent Hoffman A48SA3812LPPL Disconnect Enclosure Type 12, 48 Inch x 37-3/8 Inch x 12 Inch, Gray Steel
- MPN: A48SA3812LPPL
- UPC: 783510405694
- PPN: HOF-A48SA3812LPPL
- UNSPSC: 39121324
CAD
$2383.23
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Disconnect Enclosures provide an extra level of visual ON or OFF indication with easy-access handle. This Disconnect Enclosure with Handle Type 12, A48SA3812LPPL item measures 48.00x37.38x12.00 inches with a material of Steel colored Gray.
Features
- 14 gauge steel
- Seams continuously welded and ground smooth
- Bonding provision on door
- External welded-on mounting brackets
- External formed body flange channels away liquids
- Removable door with continuous hinge
- Data pocket is high impact thermoplastic
- Oil-resistant gasket
- Collar studs for mounting optional panels
- Holes in body and door for mounting disconnect operating handle, operating mechanism, and door hardware
- Supplied standard with POWERGLIDE handle and latching hardware; note that model A60SA3812A24LP is sold without handle
- Includes latch pivot post(s) and adjustable door interlock bracket fastened to door, cover latch bar for door, and instructions for installing disconnects
Documentation & Downloads
Specifications
Additional
- Size
- 48.00 x 37.38 x 12.00 in
- Height
- 1219 mm
- Material
- 14 gauge Steel
- Exterior Color
- ANSI 61 gray
- IP Rating
- IP65
- Protection Rating
- NEMA Type 12
- Weight
- 97 lbs
- Data Pocket Material
- High impact thermoplastic
- Body Flange
- External formed, channels away liquids
- Mounting Brackets
- External welded-on
- Bonding Provision
- On door
- Included Hardware
- Latch pivot post(s), adjustable door interlock bracket, cover latch bar, instructions for installing disconnects
Width949 mm
Depth305 mm
FinishPowder Coated
Interior ColorWhite
NEMA Rating12 Indoor, dust-resistant
Thickness1.9 mm
Data Pocket Size305 x 305 mm
SeamsContinuously welded and ground smooth
DoorRemovable with continuous hinge
GasketOil-resistant
Collar StudsFor mounting optional panels
Handle IncludedYes
