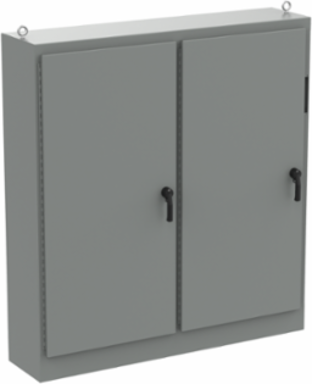

nVent Hoffman A84XM7818FTCLP4 Free-Stand Disconnect 84.12x78.50x18.12 Inch, Gray Steel, NEMA 4
- MPN: A84XM7818FTCLP4
- UPC: 783510278144
- PPN: HOF-A84XM7818FTCLP4
- UNSPSC: 39121324
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Free-Stand Type 4 Disconnect Enclosure for heavy industrial use. This Free-Stand Disconnect with QR Hinge Type 4, A84XM7818FTCLP4 item measures 84.12x78.50x18.12 inch with material of Steel color Gray.
Features
- Quick-release continuous hinge
- Seams continuously welded and ground smooth
- Body stiffeners in larger enclosures for extra rigidity
- Body flange trough excludes liquids and contaminants
- Heavy-duty lifting eyes anchor into reinforced top
- Removable centerposts permit easy panel installation
- Heavy-duty 3-point latching mechanism operated by padlocking handle on all doors
- Ends of latch rods have rollers for easier door closing
- Panel supports
- Data pocket is high-impact thermoplastic
- Oil-resistant gasket
- Master door is far right-hand door on all enclosures
- Defeater on primary door requires a screwdriver to open
- Mechanical interlock activated by primary door prevents secondary doors from being opened first; doors can be closed in any order
- Universal cutout on right flange provides mounting for most disconnect operators by using operator adapters
- Models do not include panels. Painted or conductive panels sold separately.
- Includes door hardware
Documentation & Downloads
Specifications
Key Specifications
- BABA
- Contact Manufacturer
- Width (W)
- 1,994
- Protection Rating
- NEMA Type 4
- Color Code
- ANSI 61
- Stiffener Locations
- 610
- NEMA Rating
- 4 Watertight
- Material
- Steel
- Color
- Gray
Height (H)2,137
Depth (D)460
FinishPowder Coated
Thickness (T)3.04
IP RatingIP66
Weight1,387,100
Size84.12 x 78.50 x 18.12 in
