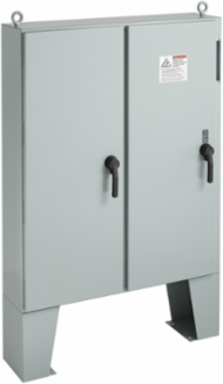

nVent Hoffman A60CPX6012LPFTCG Floorstand Disconnect 2 Door Steel Enclosure, 60.12x60.50x12.12 Inch, NEMA 12
- MPN: A60CPX6012LPFTCG
- UPC: 783510256548
- PPN: HOF-A60CPX6012LPFTCG
- UNSPSC: 39121324
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Heavy duty two door disconnect on floor stands designed for indoor industrial use. This Floorstand Disconnect 2Dr Gray Inside Type 12, A60CPX6012LPFTCG item measures 60.12x60.50x12.12in with material of Steel color Gray.
Features
- Seams continuously welded and ground smooth
- Body stiffeners in larger enclosures for extra rigidity
- Body flange trough excludes liquids and contaminants
- Removable centerposts permit easy panel installation
- Concealed, easy-to-remove hinges
- Heavy-duty 3-point latching mechanism operated by padlocking handle on all doors
- Heavy-duty lifting eyes anchor into reinforced top
- Data pocket is high impact thermoplastic
- 15-inch floor stands are bolted-on to enclosure
- Provisions for mounting lights
- Oil-resistant door gasket
- Panel supports
- Collar studs provided for mounting optional panels
- Master door is right-hand door on X enclosures and left-hand door on CPX enclosures
- Mechanical interlock operated by primary door prevents secondary door from being opened first; doors can be closed in any order
- Includes door hardware
Documentation & Downloads
Specifications
Key Specifications
- BABA
- Contact Manufacturer
- Width (W)
- 1,537
- Protection Rating
- NEMA Type 12
- Exterior Color
- Gray
- Exterior Color Code
- ANSI 61
- Stiffener Position (S)
- 533
- IP Rating
- IP55
- Material
- Steel
- Color
- Gray
Height (H)1,527
Depth (D)308
FinishPowder Coated
Interior ColorGray
Thickness (T)3.04
NEMA Rating12 Indoor, dust-resistant
Weight570
Size60.12x60.50x12.12 in
