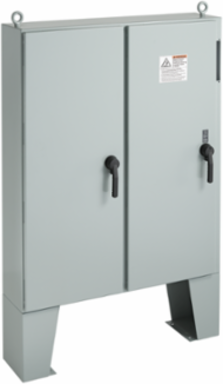

nVent Hoffman A72X7318LPFTCG Floorstand Disconnect 2 Door Steel Enclosure, 72.12x73.75x18.12 Inch, NEMA Type 12
- MPN: A72X7318LPFTCG
- UPC: 783510256685
- PPN: HOF-A72X7318LPFTCG
- UNSPSC: 39121324
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Heavy duty two door disconnect on floor stands designed for indoor industrial use. This Floorstand Disconnect 2Dr Gray Inside Type 12, A72X7318LPFTCG item measures 72.12x73.75x18.12in with material of Steel color Gray.
Features
- Seams continuously welded and ground smooth
- Body stiffeners in larger enclosures for extra rigidity
- Body flange trough excludes liquids and contaminants
- Removable centerposts permit easy panel installation
- Concealed, easy-to-remove hinges
- Heavy-duty 3-point latching mechanism operated by padlocking handle on all doors
- Heavy-duty lifting eyes anchor into reinforced top
- Data pocket is high impact thermoplastic
- 15-inch floor stands are bolted-on to enclosure
- Provisions for mounting lights
- Oil-resistant door gasket
- Panel supports
- Collar studs provided for mounting optional panels
- Master door is right-hand door on X enclosures and left-hand door on CPX enclosures
- Mechanical interlock operated by primary door prevents secondary door from being opened first; doors can be closed in any order
- Includes door hardware
Documentation & Downloads
Specifications
Additional
- Size
- 72.12 x 73.75 x 18.12 in
- Width (W)
- 1,873 mm
- Weight
- 772 lb
- Thickness (T)
- 11 gauge (3.04 mm)
- Protection Rating
- NEMA Type 12
- IP Rating
- IP55
- Exterior Color Code
- ANSI 61
- Interior Color
- Gray
- Construction
- Seams continuously welded and ground smooth
- Hinges
- Concealed, easy-to-remove
- Body Stiffeners
- Included for extra rigidity, position 610 mm
- Collar Studs
- Provided for mounting optional panels
- Body Flange Trough
- Excludes liquids and contaminants
- Interlock Type
- Mechanical, prevents secondary door opening first
- Stand Attachment
- Bolted-on floor stands, 15 in. height
Height (H)1,832 mm
Depth (D)460 mm
MaterialSteel
FinishANSI 61 gray polyester powder coat inside and outside
NEMA Rating12 Indoor, dust-resistant
ColorGray
Exterior ColorGray
Door ConfigurationTwo-door, master door right-hand
Door GasketOil-resistant
Latching MechanismHeavy-duty 3-point, padlocking handle
Panel SupportsProvided
Data Pocket MaterialHigh impact thermoplastic
Mounting ProvisionsFor mounting lights
Lifting EyesHeavy-duty, anchored into reinforced top
