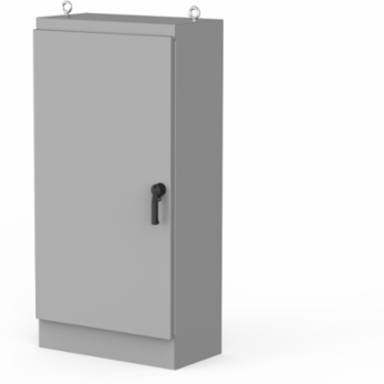

nVent Hoffman A727218FSD Freestand Single Access NEMA Type 12 Enclosure, 72.06 x 72.06 x 18.06 Inch, Gray Steel
- MPN: A727218FSD
- UPC: 783510269500
- PPN: HOF-A727218FSD
- UNSPSC: 39121324
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
NEMA Type 3R, Free-Stand, Front and/or Rear Access, Enclosures protect equipment and employees. This Freestand Single Access White Inside Type 3R, A727218FSD item measures 72.06x72.06x18.06in. with a material of Steel colored Gray.
Features
- Seams continuously welded and ground smooth; no holes or knockouts
- Stiffeners on back of two-door enclosures maintain flatness and increase rigidity
- Lifting eyes for easy handling
- 3-point latches operated by padlocking handle
- Concealed, easy-to-remove hinges
- Data pockets are high-impact thermoplastic
- Internal mounting channels welded horizontally to sides at top, bottom and center
- Optional panels and rack mount angles can be mounted anywhere along channels
- Single door type 4 foam in place gasket, double door type 3R strip gasket
- Bonding provision on door
- Provision for mounting LED light
Documentation & Downloads
Specifications
Additional
- Protection Rating
- NEMA Type 3R
- Weight
- 609 lbs
- Finish
- Powder Coated
- Interior Color
- White
- IP Rating
- IP32
- Height (H)
- 1,830 mm
- Depth (D)
- 459 mm
- Color Code
- ANSI 61
- Access
- Single Door
- Latch Type
- 3-point padlocking handle
- Seams
- Continuously welded and ground smooth; no holes or knockouts
- Handles
- Concealed, easy-to-remove hinges
- Bonding Provision
- On door
- Stiffeners
- On back of two-door enclosures to maintain flatness and rigidity
Size72.06 72.06 18.06 in
MaterialMild Steel
ColorGray
NEMA Rating12 Indoor, dust-resistant
Thickness (T)2.66
Width (W)1,830 mm
Rack Unit Quantity35
Lifting Eye Quantity2
Gasket TypeFoam in place, type 4 (single door)
Mounting ChannelsWelded horizontally to sides at top, bottom and center
Data Pockets MaterialHigh-impact thermoplastic
Lifting EyesIncluded for easy handling
Provision for LED LightIncluded
