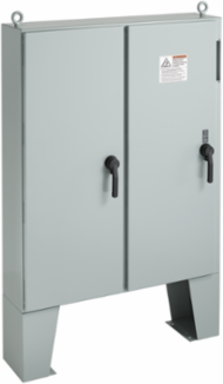

nVent Hoffman A72CPX7218LPFTC Floorstand Disconnect 2Dr Wht Inside Type 12, 72.12x72.50x18.12, Gray, Steel
nVent Hoffman A72CPX7218LPFTC Floorstand Disconnect 2Dr Wht Inside Type 12, 72.12x72.50x18.12, Gray, Steel
- MPN: A72CPX7218LPFTC
- UPC: 783510206895
- PPN: HOF-A72CPX7218LPFTC
- UNSPSC: 39121324
Spec sheet
Loading compare button...
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
Description
Heavy duty two door disconnect on floor stands designed for indoor industrial use. This Floorstand Disconnect 2Dr Wht Inside Type 12, A72CPX7218LPFTC item measures 72.12x72.50x18.12in with material of Steel color Gray.
Features
- Seams continuously welded and ground smooth
- Body stiffeners in larger enclosures for extra rigidity
- Body flange trough excludes liquids and contaminants
- Removable centerposts permit easy panel installation
- Concealed, easy-to-remove hinges
- Heavy-duty 3-point latching mechanism operated by padlocking handle on all doors
- Heavy-duty lifting eyes anchor into reinforced top
- Data pocket is high impact thermoplastic
- 15-inch floor stands are bolted-on to enclosure
- Provisions for mounting lights
- Oil-resistant door gasket
- Panel supports
- Collar studs provided for mounting optional panels
- Master door is right-hand door on X enclosures and left-hand door on CPX enclosures
- Mechanical interlock operated by primary door prevents secondary door from being opened first; doors can be closed in any order
- Includes door hardware
Specifications
Specifications
- BABA
- Contact Manufacturer
- Width (W)
- 1,842
- Protection Rating
- NEMA Type 12
- Exterior Color
- Gray
- Exterior Color Code
- ANSI 61
- Stiffener Position (S)
- 610
- IP Rating
- IP65
- Material
- Steel
Height (H)1,832
Depth (D)460
FinishPowder Coated
Interior ColorWhite
Thickness (T)3.04
NEMA Rating12 Indoor, dust-resistant
Weight80
Size72.12x72.50x18.12 in
