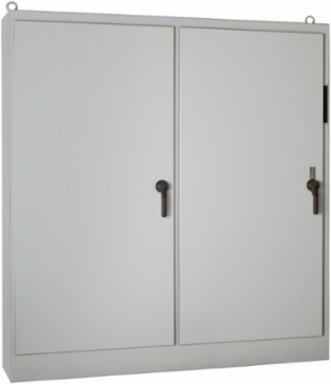

nVent Hoffman A72XM5418FTCLP Heavy-Duty Disconnect Enclosure 72.12x54.50x18.12 Inch Steel, NEMA Type 12
- MPN: A72XM5418FTCLP
- UPC: 783510135942
- PPN: HOF-A72XM5418FTCLP
- UNSPSC: 39121324
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Heavy duty durable multi-bay enclosures design for indoor industrial applications. This Heavy-Duty Disconnect White Inside LP Type 12, A72XM5418FTCLP item measures 72.12x54.50x18.12in with material of Steel color Gray.
Features
- Seams continuously welded and ground smooth
- Body stiffeners in larger enclosures for extra rigidity
- Body flange trough excludes liquids and contaminants
- Heavy-duty lifting eyes anchor into reinforced top
- Removable centerposts permit easy panel installation
- Concealed, easy-to-remove hinges
- Heavy-duty 3-point latching mechanism operated by padlocking handle on all doors
- Panel supports
- Data pocket is high-impact thermoplastic
- Oil-resistant gasket
- Master door is far right-hand door on all enclosures
- Defeater on primary door requires a screwdriver to open
- Mechanical interlock activated by primary door prevents secondary doors from being opened first; doors can be closed in any order
- Universal cutout on right flange provides mounting for most disconnect operators by using operator adapters
- Models available with panel included or panel sold separately
- FTC models include removable painted 10 gauge steel panels which mount on collar studs
- Includes door hardware
Documentation & Downloads
Specifications
Additional
- Protection Rating
- NEMA Type 12 Indoor, dust-resistant
- IP Rating
- IP55
- Width (W)
- 1,384 mm
- Depth (D)
- 460 mm
- Weight
- 619 lb
- Finish
- ANSI 61 gray outside, white inside polyester powder paint
- Gauge
- 11 gauge
- Panel Mounting
- Panels mount on collar studs
- Door Hinge
- Concealed, easy-to-remove hinges
- Door Interlock
- Mechanical interlock activated by primary door prevents secondary doors from opening first
- Door Defeater
- Requires screwdriver to open primary door
- Body Flange
- Trough excludes liquids and contaminants
- Centerposts
- Removable for easy panel installation
- Gasket Material
- Oil-resistant gasket
- Seams
- Continuously welded and ground smooth
- Panel Availability
- Models with panel included or panel sold separately
NEMA Rating12 Indoor, dust-resistant
Size72.12 x 54.50 x 18.12 in
Height (H)1,832 mm
Thickness (T)3.04 mm
MaterialSteel
Panel IncludedNo
Panel Thickness10 gauge panels
Door ConfigurationTwo doors
Door Latching MechanismHeavy-duty 3-point latching with padlocking handle
Master Door LocationFar right-hand door
Body StiffenersIn larger enclosures for extra rigidity
Lifting EyesHeavy-duty, anchor into reinforced top
Data Pocket MaterialHigh-impact thermoplastic
Panel SupportsIncluded
Universal CutoutOn right flange for mounting disconnect operators using adapters
Included HardwareIncludes door hardware
