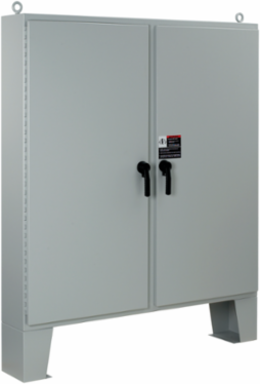

nVent Hoffman A74H6018LP3PT Two-Door Floorstand and 3pt Latch Type 4, 74.06x60.06x18.06, Gray, Steel
nVent Hoffman A74H6018LP3PT Two-Door Floorstand and 3pt Latch Type 4, 74.06x60.06x18.06, Gray, Steel
- MPN: A74H6018LP3PT
- UPC: 783510238346
- PPN: HOF-A74H6018LP3PT
- UNSPSC: 39121324
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
Description
NEMA Type 4 two-door enclosure for indoor or outdoor use on floorstands and 3 point latch. This Two-Door Floorstand and 3pt Latch Type 4, A74H6018LP3PT item measures 74.06x60.06x18.06 inch with a material of Steel colored Gray.
Features
- Three-point latch for security and ease of use
- Return flange around the door opening excludes liquids and contaminants
- Removable centerpost permits easy panel installation
- 3-point latch system with PowerGlide padlocking handles
- Seams continuously welded and ground smooth; no holes or knockouts
- Body stiffeners
- Panel supports
- Heavy gauge continuous hinge with stainless steel hinge pin
- Data pocket is high-impact thermoplastic
- 12-in. floor stands are bolted-on to enclosure
- Heavy-duty lifting eyes
- Oil-resistant door gasket
- Collar stud for mounting optional panels
- Grounding stud on body
- Bonding provision on door
- Provision for mounting fluorescent light
Specifications
Specifications
- BABA
- Contact Manufacturer
- Width (W)
- 1,526
- Protection Rating
- NEMA Type 12
- Color Code
- ANSI 61
- Body Stiffener (S)
- 533
- Weight
- 576
- Size
- 74.06x60.06x18.06 in
- NEMA Rating
- 4 Watertight
Height (H)1,881
Depth (D)459
FinishPowder Coated
Thickness (T)2.66
IP RatingIP66
MaterialSteel
ColorGray
