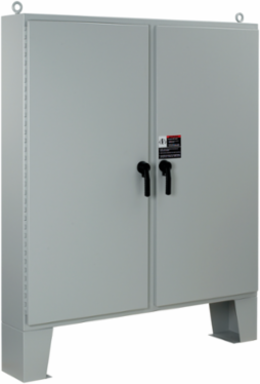

nVent Hoffman A74H7224LP3PT Two-Door Floorstand and 3pt Latch Type 4, 74.06x72.06x24.06, Gray, Steel
- MPN: A74H7224LP3PT
- UPC: 783510154516
- PPN: HOF-A74H7224LP3PT
- UNSPSC: 39121324
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
NEMA Type 4 two-door enclosure for indoor or outdoor use on floorstands and 3 point latch. This Two-Door Floorstand and 3pt Latch Type 4, A74H7224LP3PT item measures 74.06x72.06x24.06 inch with a material of Steel colored Gray.
Features
- Three-point latch for security and ease of use
- Return flange around the door opening excludes liquids and contaminants
- Removable centerpost permits easy panel installation
- 3-point latch system with PowerGlide padlocking handles
- Seams continuously welded and ground smooth; no holes or knockouts
- Body stiffeners
- Panel supports
- Heavy gauge continuous hinge with stainless steel hinge pin
- Data pocket is high-impact thermoplastic
- 12-in. floor stands are bolted-on to enclosure
- Heavy-duty lifting eyes
- Oil-resistant door gasket
- Collar stud for mounting optional panels
- Grounding stud on body
- Bonding provision on door
- Provision for mounting fluorescent light
Documentation & Downloads
Specifications
Additional
| Protection Rating | NEMA Type 12, NEMA Type 4 Watertight |
|---|---|
| Material | Steel |
| Weight | 726 lb |
| Body Stiffener (S) | 610 Included |
| Width (W) | 1,830 mm |
| Depth (D) | 611 mm |
| Mount Type | Floor-Stand |
| Floor Stands Height | 12 in |
| Hinge | Heavy gauge continuous hinge with stainless steel pin |
| Centerpost | Removable |
| Data Pocket Material | High-impact thermoplastic |
| Mounting Provisions | Collar stud for optional panels, fluorescent light |
| Size | 74.06 x 72.06 x 24.06 in |
|---|---|
| Finish | Powder Coated Gray (ANSI 61 polyester paint) |
| Thickness (T) | 2.66 mm |
| IP Rating | IP66 |
| Height (H) | 1,881 mm |
| Number of Doors | Two |
| Latch System | 3-Point with PowerGlide padlocking handles |
| Seam Construction | Continuously welded and ground smooth, no holes or knockouts |
| Door Gasket | Oil-resistant |
| Body Stiffeners | Included |
| Lifting Eyes | Heavy-duty |
| Grounding and Bonding | Grounding stud on body, bonding provision on door |
