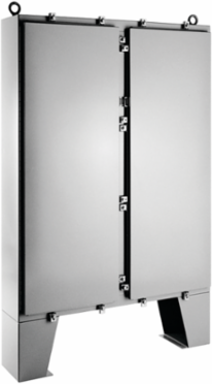

nVent Hoffman A74H72DULP Two-Door with Floorstand Type 4, 74.06x72.06x12.06, Gray, Steel
- MPN: A74H72DULP
- UPC: 783510277703
- PPN: HOF-A74H72DULP
- UNSPSC: 39121324
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
NEMA Type 4 two door enclosure on floorstands with clamps for wet, non-corrosive environments. This Two-Door with Floorstand Type 4, A74H72DULP item measures 74.06x72.06x12.06 inches with a material of Steel colored Gray.
Features
- Seams continuously welded and ground smooth
- Body stiffeners for added strength
- Removable centerpost permits easy panel installation
- Panel supports
- Return flange around three sides of door and along top of enclosure opening channels away liquids and contaminants
- Stainless steel door clamps on three sides of each door assure water-tight seal
- Heavy gauge continuous hinge with stainless steel hinge pin
- Hasp and staple for padlock
- Data pocket is high-impact thermoplastic
- 12-in. floor stands bolted-on to enclosure
- Heavy-duty lifting eyes
- Oil-resistant door gasket
- Collar studs provided for mounting optional panels
- Grounding stud on body
- Bonding provision on door
- Provision for mounting fluorescent light
Documentation & Downloads
Specifications
Key Specifications
| BABA | Contact Manufacturer |
|---|---|
| Width (W) | 1,830 |
| Protection Rating | NEMA Type 12 |
| Color Code | ANSI 61 |
| Body Stiffener (S) | 610 |
| IP Rating | IP66 |
| Material | Steel |
| Color | Gray |
| Height (H) | 1,881 |
|---|---|
| Depth (D) | 306 |
| Finish | Powder Coated |
| Thickness (T) | 2.66 |
| Clamp Quantity | 18 |
| Weight | 593 |
| Size | 74.06x72.06x12.06 in |
| NEMA Rating | 4 Watertight |
