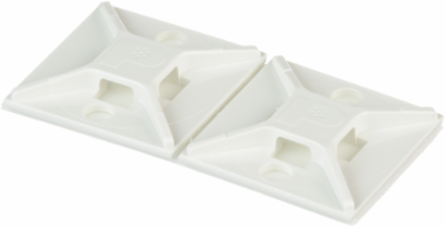

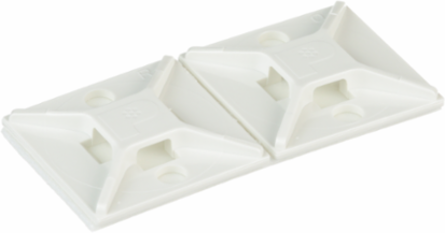

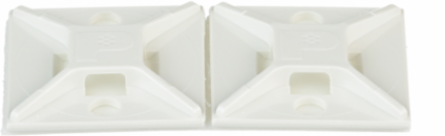

Panduit ABM2S-A-D ABM2S-A-D Cable Tie Mount, White, ABS, Rubber Adh., 1x1", PK500
- MPN: ABM2S-A-D
- UPC: 074983580309
- PPN: PAN-ABM2S-A-D
- UNSPSC: 39121717
CAD
$0.69
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Panduit’s ABM2S-A-D 4-way rubber-based adhesive backed cable tie mounts have been designed for fast installation and long-term performance and reliability. They are made of ABS plastic. These mounts can be used with miniature, intermediate, and standard cable ties and are intended for use in indoor environments. They are 1” x 1” (25.4mm x 25.4mm), supplied in strips of 2, are white in color and come in packages of 500.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | United States |
|---|---|
| Product Segment | IEI |
| Mount Method | Adhesive Tape |
| Overall Length (mm) | 25.4 |
| Application | Used with Miniature, Intermediate, and Standard Cables Ties |
| For Use With | Miniature, Intermediate, Standard Cross-Section Ties |
| Minimum Operating Temperature (°C) | -29 |
| Overall Height (mm) | 5.1 |
| Maximum Compatible Panel Thickness (In.) | 0.04 |
| Overall Length (In.) | 1 |
| Minimum Operating Temperature (°F) | -20 |
| Environment | Indoor |
| Material Description | ABS |
| Any Reason Not to Sell | N |
|---|---|
| Overall Width (In.) | 1 |
| Overall Height (In.) | 0.2 |
| Maximum Compatible Panel Thickness (mm) | 1 |
| Product Type | Cable Tie Mount |
| Static Load Capacity (lb) | 0.5 |
| Material | ABS |
| Maximum Operating Temperature (°C) | 49 |
| Color | White |
| Static Load Capacity (kg) | 0.227 |
| Overall Width (mm) | 50.3 |
| Maximum Operating Temperature (°F) | 120 |
| Adhesive Material | Rubber |
Packaging Details
| UPC | 07498358030 |
|---|---|
| Standard Package Volume Ft3 | 0.1285 |
| Std Package Height In | 2.85 |
| Std Package Length In | 11.4 |
| Std Package Width In | 10.05 |
| Std. Pkg. UOM | Piece |
| Std. Pkg. Qty. | 500 |
| Standard Carton Volume Ft3 | 1.2851 |
| Std Carton Height In | 10.9 |
| Std Carton Length In | 14.55 |
| Std Carton Width In | 14.5 |
| Std Ctn Qty | 5000 |
| EAN | 00074983580309 |
| California Pro65 Cancer | No |
| Mercury Content Indicator | N |
| Min Order Qty | 1,000.0000 |
| Pallet Volume | 46.263843 |
| RoHS Compliant | Compliant |
| GTIN Package | 00074983580309 |
|---|---|
| Standard Package Weight Pounds | 1.4500 |
| Std Package Height MM | 72.39 |
| Std Package Length MM | 289.56 |
| Std Package Width MM | 255.27 |
| UOM EA PK | PK |
| GTIN Carton | 50074983580304 |
| Standard Carton Weight Pounds | 14.5000 |
| Std Carton Height MM | 276.86 |
| Std Carton Length MM | 369.57 |
| Std Carton Width MM | 368.3 |
| Min. Order UOM | Piece |
| REACH Status | N |
| ARRA Compliant | Y |
| Hazardous Material Flag | N |
| Pallet Quantity | 180,000 |
| Pallet Weight | 522.0000 |
