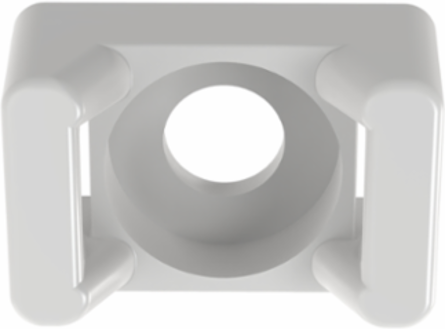

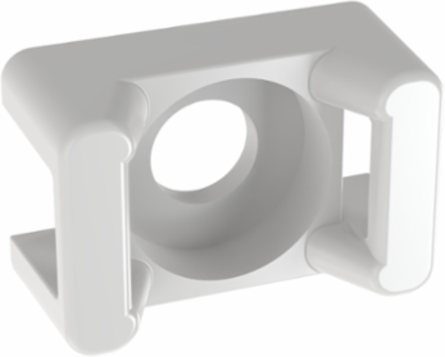

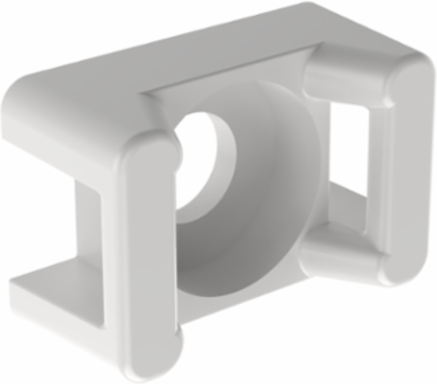

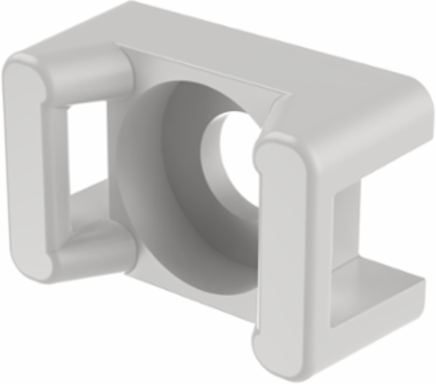

Panduit TM2S8-C TM2S8-C Cable Tie Mount, Natural, PA 6.6, 0.63x0.43", #8 Screw, PK100
- MPN: TM2S8-C
- UPC: 074983582204
- PPN: PAN-TM2S8-C
- UNSPSC: 39121717
CAD
$0.49
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Panduit TM2S8-C screw applied cable tie mounts offer a through hole in the mount in which a screw or rivet can be secured, this offers maximum stability for cable bundles. Install with a #8 (M4) screw. Suitable for miniature, intermediate and standard cross-section cable ties. Made of Nylon 6.6, which increases mechanical strength, heat and wear resistance, and stiffness. They are 0.43" (10.9 mm) wide, are natural in color and come in packages of 100.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | United States |
|---|---|
| Product Segment | IEI |
| Application | Unique Cradle Design Provides Maximum Stability for the Cable Bundle and Low Profile Design Keeps Bundle Close to Mounting Surface |
| Product Type | Cable Tie Mount |
| Overall Width (mm) | 10.8 |
| Overall Height (In.) | 0.27 |
| Minimum Operating Temperature (°C) | -60 |
| Environment | Indoor |
| Overall Width (In.) | 0.43 |
| Overall Height (mm) | 7 |
| Material Description | Nylon 6.6 |
| Any Reason Not to Sell | N |
|---|---|
| Maximum Operating Temperature (°C) | 85 |
| Overall Length (In.) | 0.63 |
| Material | Nylon 6.6 |
| Minimum Operating Temperature (°F) | -76 |
| Maximum Operating Temperature (°F) | 185 |
| Overall Length (mm) | 16 |
| Color | Natural |
| Mount Method | Screw-On |
| For Use With | Miniature, Intermediate, Standard Cross-Section Ties |
| Compatible Screw Size | #8 |
Packaging Details
| UPC | 07498358220 |
|---|---|
| Standard Package Volume Ft3 | 0.0266 |
| Std Package Height In | 1.2 |
| Std Package Length In | 5.55 |
| Std Package Width In | 4.9 |
| Std. Pkg. UOM | Piece |
| Std. Pkg. Qty. | 100 |
| Standard Carton Volume Ft3 | 0.1329 |
| Std Carton Height In | 4.55 |
| Std Carton Length In | 10.25 |
| Std Carton Width In | 6.25 |
| Std Ctn Qty | 500 |
| EAN | 00074983582204 |
| California Pro65 Cancer | No |
| Mercury Content Indicator | N |
| Min Order Qty | 500.0000 |
| Pallet Volume | 42.384494 |
| RoHS Compliant | Compliant |
| GTIN Package | 00074983582204 |
|---|---|
| Standard Package Weight Pounds | 0.2000 |
| Std Package Height MM | 30.48 |
| Std Package Length MM | 140.97 |
| Std Package Width MM | 124.46 |
| UOM EA PK | PK |
| GTIN Carton | 50074983582209 |
| Standard Carton Weight Pounds | 1.0000 |
| Std Carton Height MM | 115.57 |
| Std Carton Length MM | 260.35 |
| Std Carton Width MM | 158.75 |
| Min. Order UOM | Piece |
| REACH Status | N |
| ARRA Compliant | Y |
| Hazardous Material Flag | N |
| Pallet Quantity | 159,500 |
| Pallet Weight | 319.0000 |
