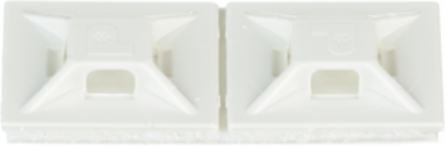

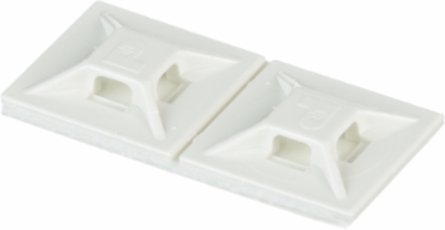

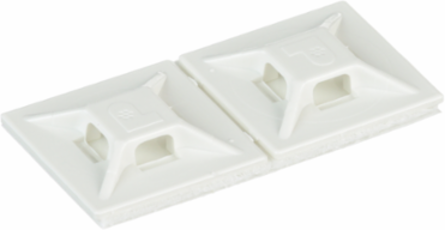

Panduit ABMM-A-C ABMM-A-C Cable Tie Mount, White, ABS, Rubber Adh., 0.75x0.75", PK100
Panduit ABMM-A-C ABMM-A-C Cable Tie Mount, White, ABS, Rubber Adh., 0.75x0.75", PK100
- MPN: ABMM-A-C
- UPC: 074983585007
- PPN: PAN-ABMM-A-C
- UNSPSC: 39121717
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To view product inventory
CAD$1.02/ EA
Description
Panduit’s ABMM-A-C rubber-based adhesive back cable tie mounts have been designed for fast installation and long-term performance. These mounts can be used with miniature and intermediate cables ties. Made of ABS plastic and intended for use in indoor environments. They are 0.75” x 0.75” (19.1mm x 19.1mm), supplied in strips of 2, are white in color and come in packages of 100.
Specifications
Specifications
- Country of Origin
- United States
- Product Segment
- IEI
- Overall Length (In.)
- 0.75
- Environment
- Indoor
- Overall Width (mm)
- 19.1
- Color
- White
- Material
- ABS
- Maximum Compatible Panel Thickness (In.)
- 0.04
- Overall Height (In.)
- 0.18
- Overall Height (mm)
- 4.6
- Minimum Operating Temperature (°C)
- -29
- Maximum Compatible Panel Thickness (mm)
- 1
Any Reason Not to SellN
Static Load Capacity (kg)0.136
Static Load Capacity (lb)0.3
Maximum Operating Temperature (°C)49
Mount MethodAdhesive Tape
Overall Length (mm)19.1
Overall Width (In.)0.75
Maximum Operating Temperature (°F)120
Minimum Operating Temperature (°F)-20
For Use WithMiniature, Intermediate Cross-Section Ties
Product TypeCable Tie Mount
Material DescriptionABS
Packaging Details
- UPC
- 07498358500
- Standard Package Volume Ft3
- 0.0266
- Std Package Height In
- 1.3
- Std Package Length In
- 6
- Std Package Width In
- 4.75
- Std. Pkg. UOM
- Piece
- Std. Pkg. Qty.
- 100
- Standard Carton Volume Ft3
- 0.1329
- Std Carton Height In
- 4.4
- Std Carton Length In
- 10.3
- Std Carton Width In
- 6.25
- Std Ctn Qty
- 500
- EAN
- 00074983585007
- California Pro65 Cancer
- No
- Mercury Content Indicator
- N
- Min Order Qty
- 500.0000
- Pallet Volume
- 42.384494
- RoHS Compliant
- Compliant
GTIN Package00074983585007
Standard Package Weight Pounds0.1800
Std Package Height MM33.02
Std Package Length MM152.4
Std Package Width MM120.65
UOM EA PKPK
GTIN Carton50074983585002
Standard Carton Weight Pounds0.9000
Std Carton Height MM111.76
Std Carton Length MM261.62
Std Carton Width MM158.75
Min. Order UOMPiece
REACH StatusN
ARRA CompliantY
Hazardous Material FlagN
Pallet Quantity159,500
Pallet Weight287.1000
