ILSCO ASK-2 Above Grade Splice Kit, Dual Rated, Conductor Range 2-8, Includes (1) SPA-2 Splice and (1) Piece of Heat Shrink, UL, CSA
- MPN: ASK-2
- UPC: 783669008388
- PPN: ILC-ASK-2
CAD
$31.57
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description

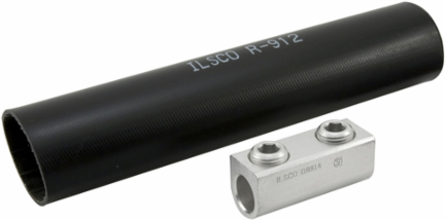

Above Grade Splice Kit, Dual Rated, Conductor Range 2-8, Includes (1) SPA-2 Splice and (1) Piece of Heat Shrink, UL, CSA
Documentation & Downloads
Specifications
Key Specifications
- Height
- 1.6 in | 40.64 mm
- Weight
- 0.0500201410800818 lbs
Length14 in | 355.6 mm
Width4 in | 101.6 mm
Voltage
- Voltage Rating
- 600 V
Dimensions
- Height BX (IN)
- 3.75
- Length (mm)
- 355.6
- Width BX (IN)
- 6.5
Height (mm)40.64
Weight BX (LB)3.476
Width (mm)101.6
Testing Standards
- Prop65 Compliance
- WARNING: Cancer and Reproductive Harm - www.P65warnings.ca.gov
- UL / CULUS Specification
- UL 486A/B Listed
UL Control Number453G
UL File NumberE125087
Additional Class Attributes
- Contains DE-OX®
- No
- Number of Conductors
- 2
Includes(1) SPA-2, (1) Piece of heat shrink
Number of Ports / Wireways2
Material and Finish
- Conductor Material
- Aluminum, Copper
MaterialAluminum, Polyolefin
Conductor Ranges
- Conductor Range AL Stranded (Primary, run, main, line)
- 2 Str - 8 Str
Conductor Range CU Stranded (Primary, run, main, line)2 Str - 8 Str
Additional Technical Specifications
- Conductor Type
- Stranded
General
- Bag Quantity
- 1
- Direct Burial
- No
- NEMA Code
- S-588-1
Carton Quantity DescriptionSTD PACK QTY 10
Dual RatedYes
UPC Code78366900838
Color
- Color
- Black, Silver
Environment and Temperature
- Temperature Rating
- 90°C
