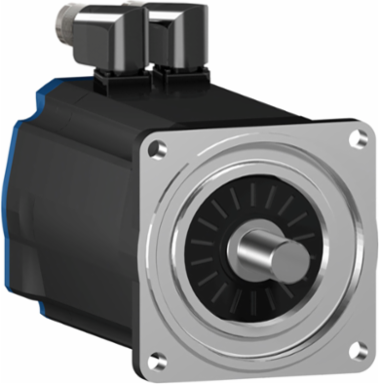

Schneider Electric BSH1002P12F2A Servo Motor, Lexium 05, 3.4 N.m Torque, 2500 rpm, 100 mm Flange, IP50
- MPN: BSH1002P12F2A
- PPN: SCH-BSH1002P12F2A
CAD
$3443.78
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
The Schneider Electric BSH1002P12F2A Servo Motor is designed to enhance automation and control in various motion control applications. With a robust torque output of 3.4 N.m and a maximum speed of 2500 rpm, this servo motor delivers reliable performance for demanding tasks. Its 100 mm flange size ensures compatibility with a wide range of systems, while the IP50 rating offers protection against dust, making it suitable for industrial environments. This motor stands out for its precision and efficiency, making it an essential component for modern automation solutions.
Documentation & Downloads
Specifications
Additional
- Torque
- 3.4 N.m
- Maximum Mechanical Speed
- 6000 rpm
- Peak Stall Torque
- 5.6 N.m to 18.3 N.m depending on model
- Maximum Current Irms
- 17.1 A
- Torque Constant
- 1.21 N.m/A
- Switching Frequency
- 8 kHz
- Nominal Torque
- 3.4 N.m to 5.8 N.m depending on model
- Holding Torque
- 9 N.m
- Maximum Axial Force
- 0.2 x Radial Force
- Length
- 235.5 mm (9.27 in)
- Shaft Length
- 40 mm (1.57 in)
- Number of Mounting Holes
- 4
- Circle Diameter of Mounting Holes
- 115 mm (4.53 in)
- Centring Collar Depth
- 3.5 mm (0.14 in)
- Number of Motor Stacks
- 2
- Material
- PVC free
- Shaft End
- Keyed
- Holding Brake
- Yes
- Electrical Connection
- Rotatable right-angled connectors
- IP Rating
- IP50
- Warranty
- 18 months
Speed2500 rpm
Continuous Stall Torque4.5 N.m to 5.8 N.m depending on model
Continuous Stall Current4.8 A
Maximum Permanent Current17.1 A
Back EMF Constant77 V/krpm
Nominal Speed1500 rpm to 6000 rpm depending on model
Nominal Output Power780 W to 2150 W depending on model
Maximum Radial Force620 N at 4000 rpm
Flange Size100 mm (3.94 in)
Shaft Diameter19 mm (0.75 in)
Key Width30 mm (1.18 in)
Mounting Holes Diameter9 mm (0.35 in)
Centring Collar Diameter95 mm (3.74 in)
Net Weight6.3 kg (13.89 lb)
Number of Motor Poles8
Type of CoolingNatural convection
Feedback TypeMultiturn SinCos Hiperface
Brake Pull-In Power18 W
Mounting SupportInternational standard flange
ComplianceRoHS, PVC free, Mercury free, REACh compliant
Country of OriginGermany (DE)
