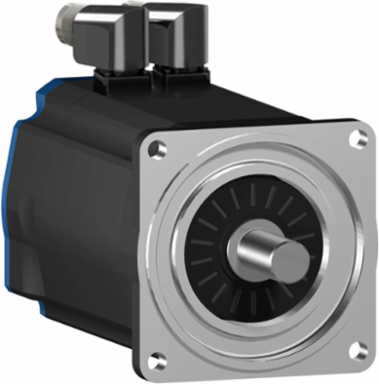

Schneider Electric BSH1003P12A2A Lexium 05 Servo Motor, 7.8 N.m, 2500 RPM, 100mm, IP50
- MPN: BSH1003P12A2A
- PPN: SCH-BSH1003P12A2A
CAD
$2916.46
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
Schneider Electric's Lexium 05 Servo Motor is engineered for high-performance automation and control applications, offering impressive torque capabilities of 7.8 N.m and a maximum rotational speed of up to 2500 RPM. Designed with a compact 100mm form factor and rated at IP50, this servo motor excels in delivering precise motion control in a variety of environments. Its reliable engineering makes it a valuable component for enhancing the efficiency and flexibility of motion systems, ensuring optimal performance in dynamic industrial tasks.
Documentation & Downloads
Specifications
Additional
- Maximum Mechanical Speed
- 6000 rpm
- Nominal Output Power
- 2000 W
- Maximum Current Irms
- 28.3 A
- Phase
- Three phase
- [Us] Rated Supply Voltage
- 480 V
- Length
- 240.5 mm
- Centring Collar Diameter
- 95 mm
- Mounting Holes Diameter
- 9 mm
- Shaft Diameter
- 19 mm (0.75 in)
- Key Width
- 30 mm (1.18 in)
- Mounting Support
- International standard flange
- Number Of Motor Poles
- 8
- Stator Resistance
- 1.43 Ohm @ 20°C
- Stator Electrical Time Constant
- 6.15 ms @ 20°C
- Type Of Cooling
- Natural convection
- Ip Degree Of Protection
- IP50
- Product Or Component Type
- Servo motor
- Pvc Free
- Yes
- Rohs Exemption Information
- Yes
Continuous Stall Torque8 N.m
Continuous Stall Current6.6 A
Torque7.8 N.m
Power Supply Voltage Max480 V
Network Number Of PhasesThree phase
Number Of Mounting Holes4
Centring Collar Depth3.5 mm
Circle Diameter Of The Mounting Holes115 mm
Shaft Length40 mm (1.57 in)
Motor Flange Size100 mm
Feedback TypeMultiturn SinCos Hiperface
Rotor Inertia3.22 kg.cm²
Stator Inductance8.8 mH @ 20°C
Switching Frequency8 kHz
Holding BrakeWithout
Range CompatibilityLexium 32, Lexium 05, Lexium 15
Sustainable Offer StatusGreen Premium product
Mercury FreeYes
Environmental DisclosureENVPEP111049EN
