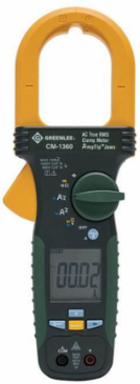

Greenlee CM-1360 AC True RMS Clamp Meter 1000V 1000A with 2 Inch Jaw Opening and LCD Display
- MPN: CM-1360
- UPC: 783310021902
- PPN: GRN-CM-1360
- UNSPSC: 41113630
CAD
$541.10
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
AC True RMS Clamp Meter 1000V 1000A with 2 Inch Jaw Opening and LCD Display
Features
- Measures AC current
- AC voltage measurement with digital low pass filter for accurate readings on variable frequency drives
- Also measures DC voltage, resistance, capacitance and frequency
- Tests continuity and diodes
- Flashlight inside clamp jaw for easier work in dark locations
- Backlight & relative mode for added versatility
- AmpTip™ increases accuracy on small wires and low current
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Taiwan |
|---|---|
| Display | LCD, 6000 Count |
| Includes | (2) 1.5V AA batteries, test leads, carrying case |
| Measurement Category | CAT III 1000V, CAT IV 600V |
| Resistance Measurement | 600, 6k, 60k Ohms |
| True Power | AC True RMS |
| Amperage Measurement | 60, 600, 1000 Amps AC |
|---|---|
| Frequency Rating | Voltage - 50/60 Hz. Current - 40 to 400 Hz |
| Jaw Opening | 2.0'' (51 mm) |
| Replacement Part | TSG-3 test leads, TC-30 carrying case |
| Standard | CAT IV, C/US UL Listed, CE |
| Voltage Measurement | 600, 1000 Volts AC/DC |
