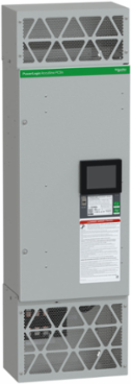

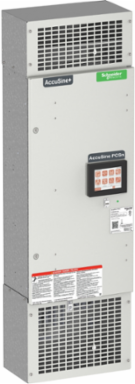

Schneider Electric PCSN060Y4N1 PCSN active harmonic filter 60 amp 208-415 VAC - wall-mounted, UL Type 1
- MPN: PCSN060Y4N1
- PPN: SCH-PCSN060Y4N1
- UNSPSC: 39122005
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description

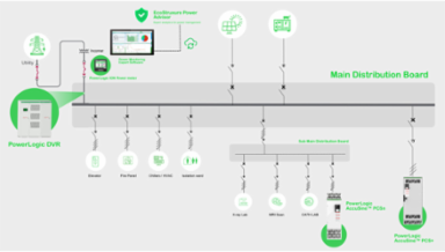

This hardware is an active power correction solution, from AccuSine familly, to help stabilize electrical networks by providing harmonic mitigation and power factor correction, and load balancing. In addition to 3-phase mitigation, it has the ability to compensate for neutral harmonic currents. This version is UL Type 1, and can be connected on Low Voltage networks rated 208 Volt to 415 Volt. It is specified for a standard Root Mean Square output current rating of 60 Amps, 180 Amps neutral. The enclosure is wall mounted, allow cable entry from bottom and is delivered in RAL7035 light grey. This active power filter achieves above standards performance THDi less or equal to 3%, is certified to CE, IBC 2015, EAC, RCM. And is designed to IEC 62477-1, IEC 61000-6-2, IEC 61000-6-4 Class A, IEC 61439-1 and IEEE 519-2014. Up to 12 units in parallel per set of CT; any size unit combination possible (subject to network characteristics). Master capable. Frame exterior dimensions are 440 millimetres in width, 265 millimetres in depth, 960 millimetres in height and product weight 75 kg.
Features
- Active harmonic filtering solution for office loads
- Suitable for application such as lights, lifts and healthcare equipements
- Compensate neutral harmonic current from single-phase non-linear loads
- Improve system reliability, operational efficiency and uptime
- The hardware are tested to handle sismic environment
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | United States |
|---|
| Depth | 10.4 in |
|---|
Physical Attributes
| Color | Light gray RAL 7035) |
|---|
Complementary Attributes
| Maximum Permissible Voltage | 1.1 x Un |
|---|
| Network Rated Voltage | 208-415 V AC |
|---|
Important Information Attributes
| Environmental Characteristic | operating 3C2 IEC 60721-3-3, operating 3S2 IEC 60721-3-3storage 3C3 IEC 60721-3-3, storage 3S3 IEC 60721-3-3 |
|---|---|
| Operating Mode | phase harmonic correction, neutral harmonic correction, mains current balancing, power factor correction |
| Local Publishable Date | 2025-07-10 |
| Device Type | Surge Protection and Power Conditioning - Filters & Harmonic Conditioners |
| Traceability | Yes |
| Service Catalog Item | Finished good |
| Weee Product Category | 4 |
| Eoli Availability Display | Yes |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant By Exemption |
| Rohs Eur Full Compliance Status | Compliant By Exemption |
| Without Single Use Plastic | No |
| Product Kit Identifier | N |
| Energy Efficiency Optimized | False |
| Impregnation Material | conformal coated |
| Mounting Location | indoor |
| Product Availability | Non-Stock - Not normally stocked in distribution facility |
| Product Or Component Type | active harmonic filter |
| Range | AccuSine |
| Reactive Power Rating | 21.6 kvar 208 V AC 50/60 Hz |
| Sustainable Packaging | No |
| Wiring Mode | 3 or 4 wires |
| Width Nominal | 17.5 in |
| Nbr. Of Units In Pkg. | 1 |
| Number Of Poles | + N, 3P |
|---|---|
| Local Data Status | Publishable |
| Return Indicator | N |
| Serviceability | Yes |
| Field Service Division | DPIBS |
| Weee Scope | In |
| Scope Perimeter | At least in Europe |
| End Of Life Doc Ref | ENVEOLI1811005EN |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | Yes |
| Rohs Eur Conformity Date | 2436 |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Electromagnetic Compatibility | electromagnetic emission, class A EN 61000-6-4electromagnetic immunity EN 61000-6-2 |
| Function Available | rear plenum with forced ventilation for high heat flow |
| Location Of Connection | bottom |
| Mounting Mode | wall-mounted |
| Product Name | AccuSine PCSn |
| Protection Type | without protection |
| Range Of Product | AccuSine |
| Returnability | No |
| Weee Label | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Height Nominal | 56.7 in |
| Certificate Agency | cULus |
| Warranty In Months | 18 |
Environment Attributes Main
| Ambient Air Temperature For Storage | -20-60 °C, -20-60 °C |
|---|---|
| Take Back | No |
| Mercury Free | Yes |
| Circularity Profile | ENVEOLI1811005EN |
| Eu Rohs Directive | Compliant By Exemption |
| Packaging Without Single Use Plastic | No |
| Relative Humidity | 0-95 % non-condensing |
| Operating Altitude | <= 3280.84 ft (1000 m) 1 % per 100 m, <= 3280.84 ft (1000 m) 1 % per 100 m, <= 3280.84 ft (1000 m) 1 % per 100 m, <= 3280.84 ft (1000 m) 1 % per 100 m, 0...4800 m |
|---|---|
| Recycled Metal Content At Cr Level | 0 % |
| Ambient Air Temperature For Operation | 0-40 °C0-50 °C maximum with current derating of 2 % per °C above 40 °C |
| Environmental Disclosure | ENVPEP1811005EN |
| Packaging Made With Recycled Cardboard | Yes |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Pep Code | ENVPEP1811005EN |
General Attributes
| Product Or Component Type | active harmonic filter |
|---|
| Range Of Product | AccuSine |
|---|
ETIM
| ETIM 8 | EC002758 |
|---|---|
| ETIM 10 | EC002758 |
| ETIM 9 | EC002758 |
|---|
Output Attributes
| Nominal Output Current | 60 A |
|---|
Input Attributes
| Input Frequency | 50/60 Hz |
|---|
