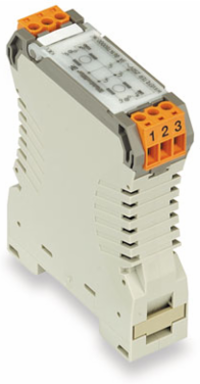

Weidmuller 8614780000 WAVEFILTER 3A
- MPN: 8614780000
- PPN: WDM-8614780000
CAD
$216.22
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
WAVESERIES, Surge protection, Surge protection, Attenuation at 100 MHz: 30 dB
Documentation & Downloads
Specifications
General Data
- Colour
- beige
- Height with TS 35
- 112.4 mm
- Rail
- TS 35
- Version
- Surge protection
DesignWave 22.5 L
Protection degreeIP20
SegmentPower distribution
Approvals
- Approvals
- cURus, EAC
- UL File Number Search
- E64388
ROHSConform
Insulation Coordination Acc. To En 50178
- Pollution severity
- 2
Surge voltage categoryIII
Rated Data Iec / En

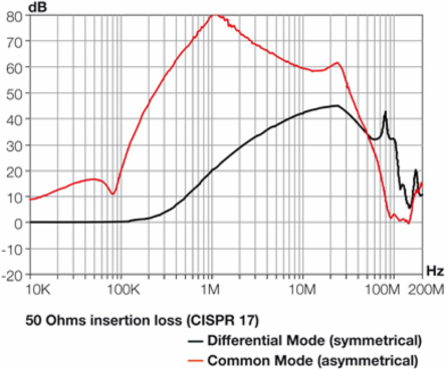

- Attenuation at 0.15 MHz
- < 0.5 dB
- Attenuation at 10 MHz
- 45 dB

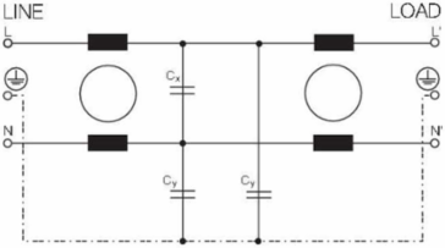

- Capacitance
- Cx / Cand : 33nF
- Inductance L and L1
- 2 mH
- Rated current I
- 3 A
- Rated voltage (DC)
- 250 V
- Test voltage P/N-PE
- 2000 V AC
Attenuation at 1 MHz18 dB
Attenuation at 100 MHz30 dB
Fuse5 A
Leakage current at U190 µA
Rated voltage (AC)250 V
Test voltage P-N1700 V DC
Voltage typeAC/DC
Dimensions And Weights
- Width
- 22.5 mm
- Height
- 73.4 mm
- Depth
- 73.4 mm
- Net weight
- 79.79 g
Width (inches)0.886 inch
Height (inches)2.89 inch
Depth (inches)2.89 inch
Connection Data
- Cross-section
- 2.5 mm²
- Tightening torque, max.
- 0.6 Nm
- Clamping range, min.
- 0.5 mm²
- Wire connection cross-section, finely stranded, min.
- 0.5 mm²
- Conductor cross-section, flexible, AEH (DIN 46228-1), min.
- 0.5 mm²
Tightening torque, min.0.4 Nm
Clamping range, rated connection2.5 mm²
Clamping range, max.2.5 mm²
Wire connection cross section, finely stranded, max.2.5 mm²
Conductor cross-section, flexible, AEH (DIN 46228-1), max.1.5 mm²
Rated Data Ul
- Certificate No. (cURus)
- E64388
Classifications
- ETIM 6.0
- EC002623
- eClass 9.0
- 27-18-28-14
- eClass 10.0
- 27-18-28-14
ETIM 7.0EC002623
eClass 9.127-42-02-08
UNSPSC30-21-18-01
Environmental Product Compliance
- REACH SVHC
- Lead 7439-92-1
Temperatures
- Operating temperature, max.
- 40 °C
- Storage temperature, max.
- 55 °C
- Operating temperature
- -20 °C...40 °C
Operating temperature, min.-20 °C
Storage temperature, min.-25 °C
Storage temperature-25 °C...55 °C
