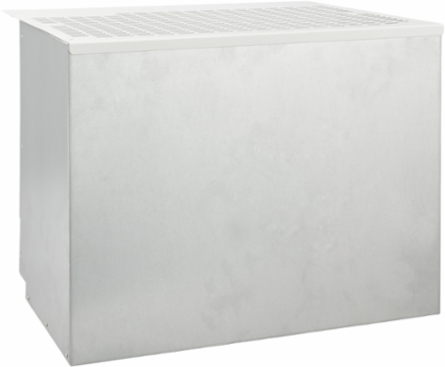

Square D PCSPWMKIT300A AccuSine PCS+ Wall Mounting Kit for 200A-300A Enclosures
- MPN: PCSPWMKIT300A
- PPN: SCH-PCSPWMKIT300A
- UNSPSC: 39121032
CAD
$1335.98
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
This kit ensure the possibility to mount an AccuSIne PCS+ or PFV+ enclosure on a wall. Can be used to convert an Ingress Protection IP00 (UP type open) rated encloure to IP20 (UL Type 1) enclosure. Includes HMI mounting plate and cable entry enclosure for mounting on the bottom of the IP00 assemblies. The kit is to be associated with a 200A or 300A unit rating. The final assembled dimensions will be 1642mm in height for 200A rating or 1882mm in height for 300A rating, 575mm in width and 435mm in depth. For a total weight, kit plus IP00 enlosure, of 8.6kg.
Features
- This kit is available as an option for converting IP00 chassis to wall mounted enclosure
- Preparation is needed to install HMI
- Screws provided for both kit and HMI
- Cover included to replace the access cover
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | United States |
|---|
Important Information Attributes
| Local Data Status | Publishable |
|---|---|
| Return Indicator | N |
| Scope Perimeter | At least in Europe |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | Yes |
| Rohs Eur Conformity Date | 2523 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | No |
| Product Contributes To Saved And Avoided Emissions | No |
| Device Composition | mounting support |
| Mounting Location | enclosure |
| Product Availability | Non-Stock - Not normally stocked in distribution facility |
| Range | AccuSine |
| Sustainable Packaging | No |
| Nbr. Of Units In Pkg. | 1 |
| Warranty In Months | 18 |
| Local Publishable Date | 2025-07-10 |
|---|---|
| Serviceability | No |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant By Exemption |
| Rohs Eur Full Compliance Status | Compliant By Exemption |
| China Rohs Label | 7 |
| Without Single Use Plastic | No |
| Product Kit Identifier | N |
| Energy Efficiency Optimized | False |
| Offer Type | spare part |
| Product Or Component Type | wall-mounting kit |
| Returnability | No |
| Accessory / Separate Part Category | installation accessory |
| Customs Code | 8543908885 |
Environment Attributes Main
| Take Back | No |
|---|---|
| China Rohs Regulation | X |
| Eu Rohs Directive | Compliant By Exemption |
| Packaging Without Single Use Plastic | No |
| Recycled Metal Content At Cr Level | 0 % |
|---|---|
| Mercury Free | Yes |
| Packaging Made With Recycled Cardboard | No |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
General Attributes
| Product Or Component Type | wall-mounting kit |
|---|
ETIM
| ETIM 8 | EC002620 |
|---|---|
| ETIM 10 | EC002620 |
| ETIM 9 | EC002620 |
|---|
Output Attributes
| Nominal Output Current | 120 A, 133 A, 157 A, 200 A |
|---|
