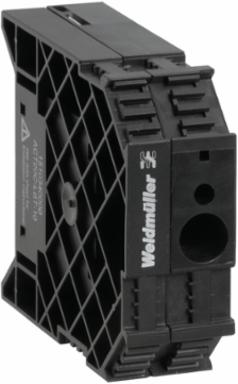

Weidmuller 1510340000 ACT20C Bus Termination Terminal, TS 35 Rail, Height 2.205 Inch, Depth 2.48 Inch
- MPN: 1510340000
- PPN: WDM-1510340000
CAD
$152.25
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Bus termination terminal
Documentation & Downloads
Specifications
General Data
- Configuration
- none
RailTS 35
Probability Of Failure
- MTTF
- 120 Years
Approvals
- Approvals
- CULUS, DNV GL, EAC
- UL File Number Search
- E141197
ROHSConform
Communication
- Configuration
- none

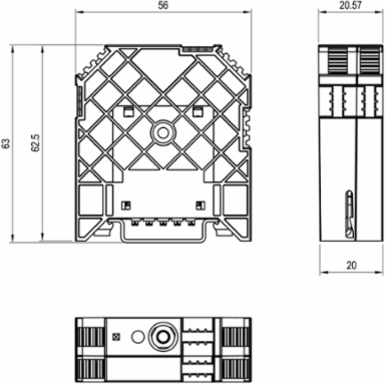

Dimensions And Weights
- Width
- 20.6 mm
- Height
- 56 mm
- Depth
- 63 mm
- Net weight
- 53.88 g
Width (inches)0.811 inch
Height (inches)2.205 inch
Depth (inches)2.48 inch
Connection Data
- Tightening torque, min.
- 1.2 Nm
Tightening torque, max.2.4 Nm
Classifications
- ETIM 6.0
- EC001583
- eClass 9.0
- 27-14-31-54
- eClass 10.0
- 27-14-31-54
ETIM 7.0EC001583
eClass 9.127-14-31-54
Product Information
- Product information

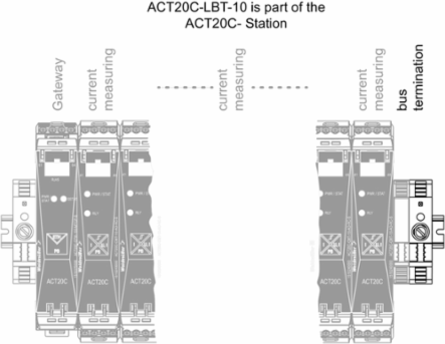

- The ACT20C-LBT-10 bus termination terminal is required as the electrical termination of the DIN rail bus on an ACT20C station. It also assumes the function of a mechanical end bracket. Properties Right-hand electrical termination of the internal communication bus on an ACT20C station Assembly on a TS 35 DIN rail with integrated CH20M bus profile Integrated mechanical end bracket function
Environmental Product Compliance
- REACH SVHC
- Lead 7439-92-1
Temperatures
- Humidity
- 5...95 %, no condensation
- Storage temperature, min.
- -40 °C
- Storage temperature
- -40 °C...85 °C
Storage temperature, max.85 °C
Ambient temperature-25 °C...+60 °C
Ratings Iecex/Atex/Cul
- Certificate no. (cULus)
- E141197
