Weidmuller 1160650000 ACT20X Signal Converter with PT100 Sensor, IP20 Protection, 0.4-0.6 Nm Torque
- MPN: 1160650000
- PPN: WDM-1160650000
CAD
$69.39
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

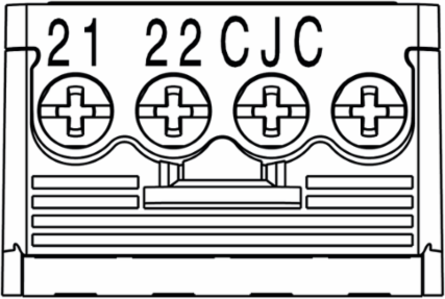

ACT20X, Signal converter/insulator, (CJC) cold-junction compensation terminal for ACT20X thermal module, built-in PT100 sensor, Labelling for channel 2 (21, 22, 23, 24)
Documentation & Downloads
Specifications
Approvals
| Approvals | EAC |
|---|
| ROHS | Conform |
|---|
Dimensions And Weights
| Net weight | 8.2 g |
|---|
Connection Data
| Type of connection | Screw connection, Removable terminal block |
|---|---|
| Tightening torque, max. | 0.6 Nm |
| Clamping range, min. | 0.5 mm² |
| Wire connection cross section AWG, min. | AWG 30 |
| Tightening torque, min. | 0.4 Nm |
|---|---|
| Clamping range, rated connection | 2.5 mm² |
| Clamping range, max. | 2.5 mm² |
| Wire connection cross section AWG, max. | AWG 14 |
Classifications
| ETIM 6.0 | EC002637 |
|---|---|
| eClass 9.0 | 27-44-04-02 |
| eClass 10.0 | 27-44-04-02 |
| ETIM 7.0 | EC002637 |
|---|---|
| eClass 9.1 | 27-44-04-02 |
Environmental Product Compliance
| REACH SVHC | Lead 7439-92-1 |
|---|
General Specifications
| Type of connection | Screw connection, Removable terminal block |
|---|
| Protection degree | IP20 |
|---|
