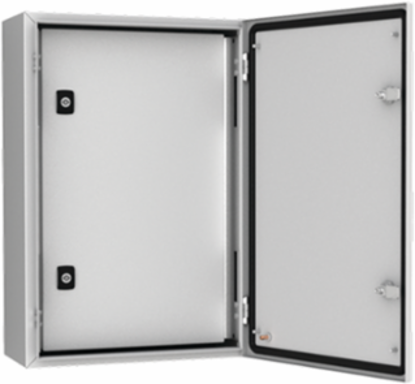

nVent Hoffman ADI04060R5 Inner Doors, 14.72 x 22.09 x 2.8 Inch, Light Gray, Mild Steel, IP2XC

MPN: ADI04060R5
UPC: 783510116217
PPN: HOF-ADI04060R5
UNSPSC: 39121321

$383.38

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

Inner Doors, ADI mount components outside enclosure while covering components within, preventing unauthorized access. This Inner Doors, ADI, ADI04060R5 item measures 374x561x71mm with a material of Mild Steel, color Light Gray.

Features

Description: For controls, meters, lamps, etc. Hinges can be mounted to allow left or right hand opening. Lock double-bit 3 mm insert; 700 mm high doors and above have 2 locks. Usable depth between inner and external door: 35 mm. Adjustable depth position with AMG accessory. Workable area: H-55, W- 108. 19" version available on request. Machining is required for stainless steel enclosures.
Material: Door 1.5 mm mild steel, vertical top and bottom profiles 2 mm mild steel.
Finish: RAL 7035 structured powder coating.
Protection: IP 2XC.
Pack quantity: Inner door, two vertical profiles, top and bottom profiles and mounting accessories.

Documentation & Downloads

Specifications

Key Specifications

BABA	Contact Manufacturer
Width (W)	561
Door Size (H x W)	345 x 492
Works With	IEC
Protection Rating	IP2XC
Finish	Powder Coated
Thickness (T)	1.5
Weight	4
Size	14.72 x 22.09 x 2.8 inch
Insulation	No
Consist of	Inner Doors; Mounting Components and Instruction Manual

Height (H)	374
Depth (D)	71
Latch Quantity	1
Enclosure Material	Mild Steel
Product Family	Wall Mounted
Color Code	RAL 7035
Package Quantity	1
Material	Mild Steel
Color	RAL 7035 Light Gray
Construction	16 gauge
Knockouts	No
