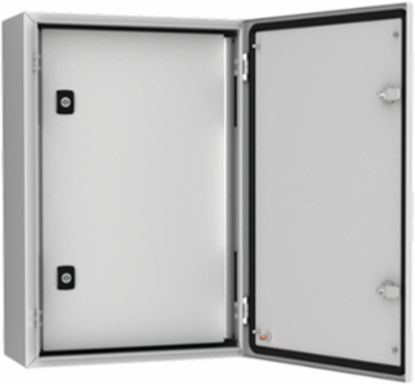

nVent Hoffman ADI06080R5 Inner Doors 22.6 x 29.96 Inch Light Gray Mild Steel IP2XC
- MPN: ADI06080R5
- UPC: 783510116460
- PPN: HOF-ADI06080R5
- UNSPSC: 39121321
CAD
$486.77
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Inner Doors, ADI mount components outside enclosure while covering components within, preventing unauthorized access. This Inner Doors, ADI, ADI06080R5 item measures 574x761x71mm with a material of Mild Steel, color Light Gray.
Features
- Description: For controls, meters, lamps, etc. Hinges can be mounted to allow left or right hand opening. Lock double-bit 3 mm insert; 700 mm high doors and above have 2 locks. Usable depth between inner and external door: 35 mm. Adjustable depth position with AMG accessory. Workable area: H-55, W- 108. 19" version available on request. Machining is required for stainless steel enclosures.
- Material: Door 1.5 mm mild steel, vertical top and bottom profiles 2 mm mild steel.
- Finish: RAL 7035 structured powder coating.
- Protection: IP 2XC.
- Pack quantity: Inner door, two vertical profiles, top and bottom profiles and mounting accessories.
Documentation & Downloads
Specifications
Key Specifications
- BABA
- Contact Manufacturer
- Width (W)
- 761
- Door Size (H x W)
- 545 x 692
- Works With
- IEC
- Protection Rating
- IP2XC
- Finish
- Powder Coated
- Thickness (T)
- 1.5
- Weight
- 8.5
- Size
- 22.6 x 29.96 x 2.8 inch
- Insulation
- No
- Consist of
- Inner Doors; Mounting Components and Instruction Manual
Height (H)574
Depth (D)71
Latch Quantity1
Enclosure MaterialMild Steel
Product FamilyWall Mounted
Color CodeRAL 7035
Package Quantity1
MaterialMild Steel
ColorRAL 7035 Light Gray
Construction16 gauge
KnockoutsNo
