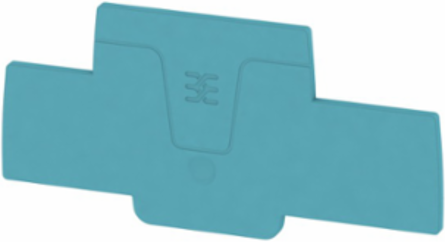

Weidmuller 1547700000 AEP End Plate, Depth 1.697 Inch, Height 3.474 Inch, Material Wemid
- MPN: 1547700000
- PPN: WDM-1547700000
CAD
$1.06
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
A-series, End plate
Documentation & Downloads
Specifications
Approvals
| ROHS | Conform |
|---|
Dimensions And Weights
| Width | 2.1 mm |
|---|---|
| Height | 88.25 mm |
| Depth | 43.1 mm |
| Net weight | 3.4 g |
| Width (inches) | 0.083 inch |
|---|---|
| Height (inches) | 3.474 inch |
| Depth (inches) | 1.697 inch |
Additional Technical Data
| Snap-on | Yes |
|---|
| With snap-in pegs | Yes |
|---|
Material Data
| Material | Wemid |
|---|---|
| UL 94 flammability rating | V-0 |
| Colour | blue |
|---|
Classifications
| ETIM 6.0 | EC000886 |
|---|---|
| eClass 9.1 | 27-14-11-33 |
| ETIM 7.0 | EC000886 |
|---|---|
| eClass 10.0 | 27-14-11-33 |
System Specifications
| Version | End plate |
|---|
Temperatures
| Storage temperature, max. | 40 °C |
|---|---|
| Storage temperature | 10 °C...40 °C |
| Continuous operating temp., max. | 130 °C |
| Storage temperature, min. | 10 °C |
|---|---|
| Continuous operating temp., min. | -60 °C |
