Weidmuller

Weidmuller 1547690000 AEP 2T 2.5

AEP 2T 2.5
  • MPN: 1547690000
  • PPN: WDM-1547690000

Spec sheet

Available to Order

Company Stock:

0

Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

Looking to buy a large quantity?

To view product inventory

CAD$1.04/ EA

Description

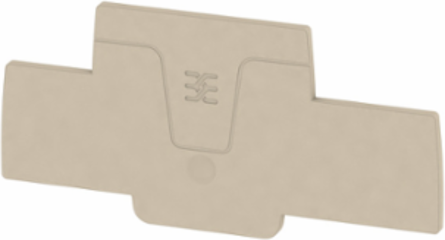

A-series, End plate

Specifications

Approvals

ROHS
Conform

Dimensions And Weights

Width
2.1 mm
Height
88.25 mm
Depth
43.1 mm
Net weight
3.3 g
Width (inches)0.083 inch
Height (inches)3.474 inch
Depth (inches)1.697 inch

Additional Technical Data

Snap-on
Yes
With snap-in pegsYes

Material Data

Material
Wemid
UL 94 flammability rating
V-0
Colourdark beige

Classifications

ETIM 6.0
EC000886
eClass 9.1
27-14-11-33
ETIM 7.0EC000886
eClass 10.027-14-11-33

System Specifications

Version
End plate

Temperatures

Storage temperature, max.
40 °C
Storage temperature
10 °C...40 °C
Continuous operating temp., max.
130 °C
Storage temperature, min.10 °C
Continuous operating temp., min.-60 °C
