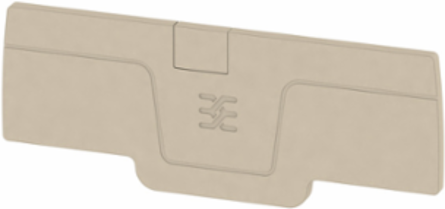

Weidmuller 1521530000 A-Series End Plate, 2.1mm Width, 2.974 Inch Height, Wemid Material
- MPN: 1521530000
- PPN: WDM-1521530000
CAD
$0.98
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
A-series, End plate
Documentation & Downloads
Specifications
Approvals
- ROHS
- Conform
Dimensions And Weights
- Width
- 2.1 mm
- Height
- 75.55 mm
- Depth
- 29.1 mm
- Net weight
- 2.45 g
Width (inches)0.083 inch
Height (inches)2.974 inch
Depth (inches)1.146 inch
Additional Technical Data
- Snap-on
- Yes
With snap-in pegsYes
Material Data
- Material
- Wemid
- UL 94 flammability rating
- V-0
Colourdark beige
Classifications
- ETIM 6.0
- EC000886
- eClass 9.1
- 27-14-11-33
ETIM 7.0EC000886
eClass 10.027-14-11-33
System Specifications
- Version
- End plate
Temperatures
- Storage temperature, max.
- 40 °C
- Storage temperature
- 10 °C...40 °C
- Continuous operating temp., max.
- 130 °C
Storage temperature, min.10 °C
Continuous operating temp., min.-60 °C
