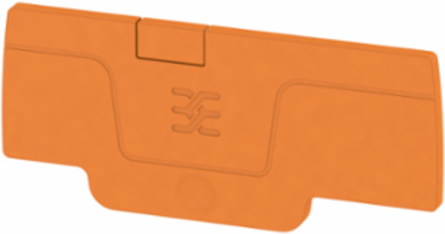

Weidmuller 2052390000 AEP Series End Plate, Height 2.347 Inch, Width 0.083 Inch, Wemid Material
- MPN: 2052390000
- PPN: WDM-2052390000
CAD
$1.01
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
A-series, End plate
Documentation & Downloads
Specifications
Approvals
- ROHS
- Conform
Dimensions And Weights
- Width
- 2.1 mm
- Height
- 59.61 mm
- Depth
- 26.3 mm
- Net weight
- 1.74 g
Width (inches)0.083 inch
Height (inches)2.347 inch
Depth (inches)1.035 inch
Additional Technical Data
- Snap-on
- Yes
With snap-in pegsYes
Material Data
- Material
- Wemid
- UL 94 flammability rating
- V-0
Colourorange
Classifications
- ETIM 6.0
- EC000886
- eClass 9.1
- 27-14-11-33
ETIM 7.0EC000886
eClass 10.027-14-11-33
System Specifications
- Version
- End plate
Temperatures
- Storage temperature, max.
- 40 °C
- Storage temperature
- 10 °C...40 °C
- Continuous operating temp., max.
- 130 °C
Storage temperature, min.10 °C
Continuous operating temp., min.-60 °C
