NEMA Size 2 3-Pole Contactor, 600V, 60A, 24-60V AC/DC Control
ABB

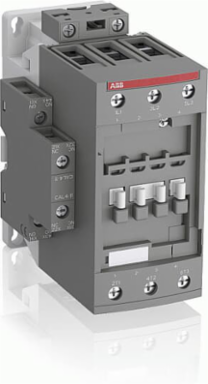

ABB AF40N2-30-11-11 NEMA Size 2 3-Pole Contactor, 600V, 60A, 24-60V AC/DC Control

  • MPN: AF40N2-30-11-11
  • UPC: 783166994702
  • PPN: ABB-AF40N2-30-11-11
  • UNSPSC: 39121529

CAD

$767.08

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Company Stock:

0

Looking to buy a large quantity?

To view product inventory

Spec sheet

Description

The AF40N2-30-11-11 is a 3 pole - 600 V UL, NEMA size N2 contactor with pre-mounted auxiliary contacts and Screw, switching power circuits up to 60 A UL general use. Thanks to the AF technology, the contactor has a wide control voltage range (24-60 V 50/60 Hz and 20-60 V DC), managing large control voltage variations, reducing panel energy consumptions and ensuring distinct operations in unstable networks. Furthermore, surge protection is built-in, offering a compact solution. AF contactors have a block type design, can be easily extended with add-on auxiliary contact blocks and an additional wide range of accessories.

Specifications

Dimensions

Product Net Width
67 mm
Product Net Height
125.5 mm
Product Net Depth / Length111 mm
Product Net Weight1.01 kg

Technical

Connecting Capacity Auxiliary Circuit
Flexible with Ferrule 1/2x 0.75 ... 2.5 mm²Flexible with Insulated Ferrule 2x 0.75 ... 1.5 mm²Flexible with Insulated Ferrule 1x 0.75 ... 2.5 mm²Rigid 1/2x 1 ... 2.5 mm²
Connecting Capacity Main Circuit
Flexible with Ferrule 1/2x 4 ... 35 mm²Flexible with Insulated Ferrule 1/2x 4 ... 35 mm²Rigid Stranded 1/2x 6 ... 35 mm²
Maximum Electrical Switching Frequency
(AC-1) 600 cycles per hour(AC-15) 1200 cycles per hour(AC-2 / AC-4) 150 cycles per hour(AC-3) 1200 cycles per hour(DC-13) 900 cycles per hour
Minimum Mounting Distance
Other Device Same Type, Horizontal 0 mmOther Device Same Type, Vertical 0 mm
Mounting Position
1, 1 +/-30°, 2, 3, 4, 5
Mounting on DIN Rail
TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
Number of Auxiliary Contacts NO
1
Number of Main Contacts NO
3
Operate Time
Between Coil De-energization and NC Contact Closing 19 ... 105 msBetween Coil De-energization and NO Contact Opening 17 ... 100 msBetween Coil Energization and NC Contact Opening 38 ... 95 msBetween Coil Energization and NO Contact Closing 42 ... 100 ms
Power Loss
at 6 A per Pole 0.1 Wat Rated Operating Conditions AC-1 per Pole 3 Wat Rated Operating Conditions AC-3 per Pole 1 W
Rated Frequency (f)
Auxiliary Circuit 50 / 60 HzControl Circuit 50 / 60 HzMain Circuit 50 / 60 Hz
Rated Insulation Voltage (Ui)
acc. to IEC 60947-4-1 690 Vacc. to IEC 60947-5-1 690 Vacc. to UL/CSA 600 V
Rated Operational Current AC-15 (Ie)
(500 V) 2 A(690 V) 2 A(24 / 127 V) 6 A(220 / 240 V) 4 A(400 / 440 V) 3 A
Rated Operational Current AC-3e (Ie)
(415 V) 60 °C 40 A(440 V) 60 °C 40 A(500 V) 60 °C 35 A(690 V) 60 °C 25 A(380 / 400 V) 60 °C 40 A(220 / 230 / 240 V) 60 °C 40 A
Rated Operational Power AC-3 (Pe)
(400 V) 18.5 kW(415 V) 22 kW(440 V) 22 kW(500 V) 22 kW(690 V) 22 kW(380 / 400 V) 18.5 kW(220 / 230 / 240 V) 11 kW
Rated Operational Voltage
Auxiliary Circuit 690 VMain Circuit 690 V
Standards
IEC/EN 60947-1, IEC/EN 60947-4-1, UL 60947-1, UL 60947-4-1, CSA C22.2 No. 60947-1:22, CSA C22.2 No. 60947-4-1:22
Tightening Torque
Auxiliary Circuit 1.2 N·mControl Circuit 1.2 N·mMain Circuit 4 N·m
Connecting Capacity Control CircuitFlexible with Ferrule 1/2x 0.75 ... 2.5 mm²Flexible with Insulated Ferrule 1x 0.75 ... 2.5 mm²Flexible with Insulated Ferrule 2x 0.75 ... 1.5 mm²Rigid Solid 1/2x 1 ... 2.5 mm²Rigid Stranded 1/2x 1 ... 2.5 mm²
Maximum Breaking Capacitycos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 440 V 950 Acos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 690 V 600 A
Maximum Mechanical Switching Frequency3600 cycles per hour
Mounted Auxiliary Contacts1 NO, 1 NC
Mounting by Screws (not supplied)2 x M4 or 2 x M6 screws placed diagonally
Number of Auxiliary Contacts NC1
Number of Main Contacts NC0
Number of Poles3
Pollution Degree3
Rated Control Circuit Voltage (Uc)50 Hz 24 ... 60 V60 Hz 24 ... 60 VDC Operation 20 ... 60 V
Rated Impulse Withstand Voltage (Uimp)6 kV
Rated Operational Current AC-1 (Ie)(690 V) 40 °C 70 A(690 V) 60 °C 60 A(690 V) 70 °C 50 A
Rated Operational Current AC-3 (Ie)(415 V) 60 °C 40 A(440 V) 60 °C 40 A(500 V) 60 °C 35 A(690 V) 60 °C 25 A(380 / 400 V) 60 °C 40 A(220 / 230 / 240 V) 60 °C 40 A
Rated Operational Current DC-13 (Ie)(24 V) 6 A / 144 W(48 V) 2.8 A / 134 W(72 V) 1 A / 72 W(110 V) 0.55 A / 60 W(125 V) 0.55 A / 69 W(220 V) 0.27 A / 60 W(250 V) 0.27 A / 68 W(400 V) 0.15 A / 60 W(500 V) 0.13 A / 65 W(600 V) 0.1 A / 60 W
Rated Operational Power AC-3e (Pe)(415 V) 22 kW(440 V) 22 kW(500 V) 22 kW(690 V) 22 kW(380 / 400 V) 18.5 kW(220 / 230 / 240 V) 11 kW
Rated Short-time Withstand Current Low Voltage (Icw)at 40 °C Ambient Temp, in Free Air, from a Cold State 10 s 600 Aat 40 °C Ambient Temp, in Free Air, from a Cold State 15 min 110 Aat 40 °C Ambient Temp, in Free Air, from a Cold State 1 min 250 Aat 40 °C Ambient Temp, in Free Air, from a Cold State 1 s 1000 Aat 40 °C Ambient Temp, in Free Air, from a Cold State 30 s 350 Afor 0.1 s 140 Afor 1 s 100 A
Terminal TypeScrew Terminals
Wire Stripping LengthAuxiliary Circuit 10 mmControl Circuit 10 mmMain Circuit 16 mm

Classifications

eClass
V11.0 : 27371003
Object Classification Code
Q
ETIM 9EC000066 - Power contactor, AC switching

Environmental

Ambient Air Temperature
Close to Contactor Fitted with Thermal O/L Relay -40 ... 70 °CClose to Contactor without Thermal O/L Relay -40 ... 70 °CClose to Contactor for Storage -60 ... +80 °C
Conventional Free-air Thermal Current (Ith)
acc. to IEC 60947-4-1, Open Contactors Θ = 40 °C 105 Aacc. to IEC 60947-5-1, Θ = 40 °C 16 A
Maximum Operating Altitude Permissible
Without Derating 3000 m
Resistance to Vibrations acc. to IEC 60068-2-6
5 ... 300 Hz 3 g closed position / 3 g open position
WEEE Category
Product Not in WEEE Scope
Climatic WithstandCategory B according to IEC 60947-1 Annex Q
Degree of Protectionacc. to IEC 60529, IEC 60947-1, EN 60529 Auxiliary Terminals IP20acc. to IEC 60529, IEC 60947-1, EN 60529 Coil Terminals IP20acc. to IEC 60529, IEC 60947-1, EN 60529 Main Terminals IP10
Resistance to Shock acc. to IEC 60068-2-27Closed, Shock Direction: A 25 gClosed, Shock Direction: B1 25 gClosed, Shock Direction: B2 15 gClosed, Shock Direction: C1 25 gClosed, Shock Direction: C2 25 gOpen, Shock Direction: A 25 gOpen, Shock Direction: B1 5 gOpen, Shock Direction: B2 15 gOpen, Shock Direction: C1 25 gOpen, Shock Direction: C2 25 g
RoHS Information2CMT2021-006277

Technical UL/CSA

Connecting Capacity Control Circuit UL/CSA
Rigid Solid 1/2x 18-14 AWGRigid Stranded 1/2x 18-14 AWG
Continuous Current Rating NEMA
45 A
General Use Rating UL/CSA
(600 V AC) 60 A
Maximum Operating Voltage UL/CSA
Main Circuit 600 V
Pilot Duty UL/CSA
A600Q600
Connecting Capacity Main Circuit UL/CSARigid Stranded 1/2x 10-2 AWG
Full Load Amps Motor Use(120 V AC) Single Phase 3 A(200 ... 208 V AC) Three Phase 10 A(220 ... 240 V AC) Three Phase 15 A(240 V AC) Single Phase 7-1/2 A(440 ... 480 V AC) Three Phase 30 A(550 ... 600 V AC) Three Phase 40 A
Horsepower Rating NEMA(115 V AC) Single Phase 3 Hp(200 V AC) Three Phase 10 Hp(230 V AC) Single Phase 7-1/2 Hp(230 V AC) Three Phase 15 Hp(460 V AC) Three Phase 25 Hp(575 V AC) Three Phase 25 Hp
NEMA Size2
Tightening Torque UL/CSAAuxiliary Circuit 11 in·lbControl Circuit 11 in·lbMain Circuit 35 in·lb

Ordering

Minimum Order Quantity
1 piece
Product Main Type
AF40N2
Customs Tariff Number85364900
