Square D 8502SBO1V02 NEMA Contactor, Type S, nonreversing, Size 0, 18A, 2 HP at 230 VAC, 1 phase, up to 100 kA, 2 pole, 120 VAC coil, open [TAA]
- MPN: 8502SBO1V02
- UPC: 785901761501
- PPN: SCH-8502SBO1V02
CAD
$698.75
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description

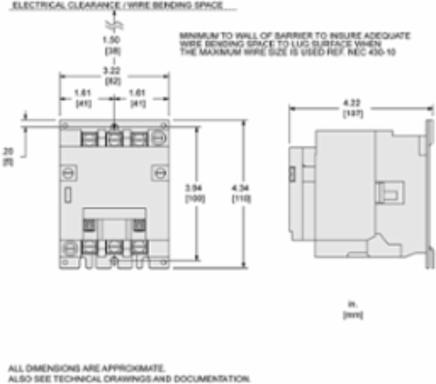

Type S non-reversing magnetic contactors are used to switch heating loads, capacitors, transformers, and electric motors where overload protection is provided separately. Type S contactors have ratings up to 810 amperes. This 2 pole NEMA Size 0 non-reversing contactor has an 18 ampere rating. Single phase NEMA Size 0 contactors have 1 HP at 115 VAC and 2 HP at 230 VAC ratings. This NEMA contactor has a 100 kA maximum SCCR rating per UL508A when protected by an appropriate circuit breaker or fuse. These contactors are available with replaceable coils in a wide variety of voltages. This contactor has a 110/120 VAC 50/60 Hz coil that is wired for common control. This NEMA contactor is an open device without an enclosure. This contactor is 4.34 inches tall, 3.22 inches wide and 4.22 inches deep. A wide variety of accessories are available for Type S contactors. Type S NEMA contactors are UL listed and CSA certified.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico, United States
- Depth
- 107.19 mm
ComplianceTAA Compliant
Complementary Attributes
- Rated Power In Hp
- 1 HP 115 V AC, 2 HP 230 V AC
- Line Rated Current
- 18 A
Control Circuitcommon control circuit
Important Information Attributes
- Certificate Agency
- UL listed file E78351 CCN NLDX, CSA
- Carbon Footprint Of The Distribution Phase [A4]
- 0.4274126495676723, 0.4 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.29571063107222256, 0.3 kg CO2 eq.
- Carbon Footprint Of The Use Phase [B2, B3, B4, B6]
- 345 kg CO2 eq., 344.93308853090406
- Local Publishable Date
- 2025-11-18
- Stocking Flag
- Y
- Device Type
- LV equipment - LV contactor
- Traceability
- No
- Average Life Duration
- 20 year(s)
- Weee Product Category
- 5
- Eoli Availability Display
- No need of specific recycling operations
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- Yes
- China Rohs Label
- 7
- Without Single Use Plastic
- Yes
- Product Kit Identifier
- N
- Control Circuit
- common control circuit
- Electrical Connection
- screw clamp terminals
- Local Signalling
- no indicator
- Phase
- 1 phase
- Product Or Component Type
- contactor
- Range Of Product
- 8502S
- Software Version
- v6.2.4
- Total Lifecycle Carbon Footprint
- 357 kg CO2 eq.
- Pep Code
- ENVPEP2506044EN
- Pep Verification Date
- 2025-09-01
- Psr Version
- PSR-0005-ed3-2023 12 08
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime, In Y
- 20
- Energy Model - Installation [A5]
- No energy used
- Energy Model - End Of Life [C1-c4]
- Global, European and French datasets are used.
- Height Nominal
- 110.24 mm
- [Ue] Rated Operational Voltage
- 600 V AC
- Package Weight(Lbs)
- 1.479 kg
- Warranty (In Months)
- 18
[Uc] Control Circuit Voltage120 V AC 60 Hz, 110 V AC 50 Hz
Carbon Footprint Of The End-of-life Phase [C1 To C4]3 kg CO2 eq., 2.591863722781034
Carbon Footprint Of The Manufacturing Phase [A1 To A3]9 kg CO2 eq., 8.759160434676387
Local Data StatusPublishable
Return IndicatorN
Stock Policy1
ServiceabilityNo
Field Service DivisionPPIBS
Weee ScopeIn
Scope PerimeterAt least in Europe
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
China Rohs In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Contactor Applicationnon-reversing
Control Typeno control units
Energy Efficiency OptimizedFalse
Number Of Poles2P
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Provided Equipmentfuse not supplied
ReturnabilityNo
Sustainable PackagingYes
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Database Version2024-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionEstablish and cut off the supply of a downstream installation from an electrical and/or mechanical control characterised by the composition of the poles or type of contacts X, a rated voltage of Ue, a rated current Ie, a control circuit voltage Uc, with Np poles, and if applicable the specific specifications, in the Household/Commercial or Industrial application areas, according to the appropriate use scenario, and during the reference service life of the product of 20 years
Functional-unit Unitunit
Energy Model - Manufacturing [A1-a3]Electricity Mix; Low voltage; 2020; United States, US
Energy Model - Use [B6]Electricity Mix; Low voltage; 2020; United States, US
Recyclability Potential, In %54
Width Nominal81.79 mm
Nbr. Of Units In Pkg.1
Take-backNo
Environment Attributes Main
- Product Compatibility
- circuit-breaker 70 A maximum, SCCR: 100 kA at 480 V AC, fuse J 60 A maximum, SCCR: 100 kA at 600 V AC, fuse T 60 A maximum, SCCR: 100 kA at 600 V AC, fuse RK1 60 A maximum, SCCR: 100 kA at 600 V AC, fuse RK5 60 A maximum, SCCR: 100 kA at 600 V AC
- Recycled Metal Content At Cr Level
- 0 %
- Carbon Footprint
- 357.0072359690014
- Eu Rohs Directive
- Not compliant
- Nema Size
- 0
- Packaging Without Single Use Plastic
- Yes
- Pep Code
- ENVPEP2506044EN
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
Take BackNo
China Rohs RegulationX
Environmental DisclosureENVPEP2506044EN
Nema Degree Of Protectionnot rated (open device)
Packaging Made With Recycled CardboardYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep Verification Date2025-09-01
Psr VersionPSR-0005-ed3-2023 12 08
General Attributes
- Phase
- 1 phase
- Provided Equipment
- fuse not supplied
Product Or Component Typecontactor
Range Of Product8502S
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
