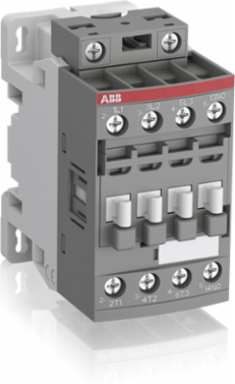

ABB AF12N0-30-10-11 NEMA Size 0 Contactor 600V AC 28A 3 Poles 24-60V Control
- MPN: AF12N0-30-10-11
- UPC: 804325724982
- PPN: ABB-AF12N0-30-10-11
- UNSPSC: 39121529
CAD
$445.82
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
The AF12N0-30-10-11 is a 3 pole - 600 V UL, NEMA size N0 contactor with 1 built-in auxiliary contact and Screw, switching power circuits up to 28 A UL general use. Thanks to the AF technology, the contactor has a wide control voltage range (24-60 V 50/60 Hz and 20-60 V DC), managing large control voltage variations, reducing panel energy consumptions and ensuring distinct operations in unstable networks. Furthermore, surge protection is built-in, offering a compact solution. AF contactors have a block type design, can be easily extended with add-on auxiliary contact blocks and an additional wide range of accessories.
Specifications
Dimensions
| Product Net Width | 45 mm |
|---|---|
| Product Net Height | 86 mm |
| Product Net Depth / Length | 77 mm |
|---|---|
| Product Net Weight | 0.27 kg |
Technical
| Connecting Capacity Auxiliary Circuit | Flexible with Ferrule 1/2x 0.75 ... 2.5 mm²Flexible with Insulated Ferrule 2x 0.75 ... 1.5 mm²Flexible with Insulated Ferrule 1x 0.75 ... 2.5 mm²Rigid Solid 1/2x 1 ... 2.5 mm²Rigid Stranded 1/2x 1 ... 2.5 mm² |
|---|---|
| Connecting Capacity Main Circuit | Flexible with Ferrule 1/2x 0.75 ... 6 mm²Flexible with Insulated Ferrule 1x 0.75 ... 4 mm²Flexible with Insulated Ferrule 2x 0.75 ... 2.5 mm²Rigid Solid 1/2x 1 ... 4 mm²Rigid Stranded 1/2x 1 ... 6 mm² |
| Maximum Electrical Switching Frequency | (AC-1) 600 cycles per hour(AC-15) 1200 cycles per hour(AC-2 / AC-4) 300 cycles per hour(AC-3) 1200 cycles per hour(DC-13) 900 cycles per hour |
| Minimum Mounting Distance | Other Device Same Type, Horizontal 0 mmOther Device Same Type, Vertical 0 mm |
| Mounting Position | 1, 1 +/-30°, 2, 3, 4, 5 |
| Mounting on DIN Rail | TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715 |
| Number of Auxiliary Contacts NO | 1 |
| Number of Main Contacts NO | 3 |
| Operate Time | Between Coil De-energization and NC Contact Closing 13 ... 98 msBetween Coil De-energization and NO Contact Opening 11 ... 95 msBetween Coil Energization and NC Contact Opening 38 ... 90 msBetween Coil Energization and NO Contact Closing 40 ... 95 ms |
| Power Loss | at 6 A per Pole 0.1 Wat Rated Operating Conditions AC-1 per Pole 1 Wat Rated Operating Conditions AC-3 per Pole 0.2 W |
| Rated Frequency (f) | Auxiliary Circuit 50 / 60 HzControl Circuit 50 / 60 HzMain Circuit 50 / 60 Hz |
| Rated Insulation Voltage (Ui) | acc. to IEC 60947-4-1 690 Vacc. to IEC 60947-5-1 690 Vacc. to UL/CSA 600 V |
| Rated Operational Current AC-15 (Ie) | (500 V) 2 A(690 V) 2 A(24 / 127 V) 6 A(220 / 240 V) 4 A(400 / 440 V) 3 A |
| Rated Operational Current AC-3e (Ie) | (415 V) 60 °C 12 A(440 V) 60 °C 12 A(500 V) 60 °C 12.5 A(690 V) 60 °C 9 A(380 / 400 V) 60 °C 12 A(220 / 230 / 240 V) 60 °C 12 A |
| Rated Operational Power AC-3 (Pe) | (400 V) 5.5 kW(415 V) 5.5 kW(440 V) 5.5 kW(500 V) 7.5 kW(690 V) 7.5 kW(380 / 400 V) 5.5 kW(220 / 230 / 240 V) 3 kW |
| Rated Operational Voltage | Auxiliary Circuit 690 VMain Circuit 690 V |
| Standards | IEC/EN 60947-1, IEC/EN 60947-4-1, UL 60947-4-1, CSA C22.2 No. 60947-4-1 |
| Tightening Torque | Auxiliary Circuit 1.2 N·mControl Circuit 1.2 N·mMain Circuit 1.5 N·m |
| Connecting Capacity Control Circuit | Flexible with Ferrule 1/2x 0.75 ... 2.5 mm²Flexible with Insulated Ferrule 1x 0.75 ... 2.5 mm²Flexible with Insulated Ferrule 2x 0.75 ... 1.5 mm²Rigid Solid 1/2x 1 ... 2.5 mm²Rigid Stranded 1/2x 1 ... 2.5 mm² |
|---|---|
| Maximum Breaking Capacity | cos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 440 V 250 Acos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 690 V 106 A |
| Maximum Mechanical Switching Frequency | 3600 cycles per hour |
| Mounted Auxiliary Contacts | 1 NO, 0 NC |
| Mounting by Screws (not supplied) | 2 x M4 screws placed diagonally |
| Number of Auxiliary Contacts NC | 0 |
| Number of Main Contacts NC | 0 |
| Number of Poles | 3 |
| Pollution Degree | 3 |
| Rated Control Circuit Voltage (Uc) | 50 Hz 24 ... 60 V60 Hz 24 ... 60 VDC Operation 20 ... 60 V |
| Rated Impulse Withstand Voltage (Uimp) | 6 kV |
| Rated Operational Current AC-1 (Ie) | (690 V) 40 °C 28 A(690 V) 60 °C 28 A(690 V) 70 °C 24 A |
| Rated Operational Current AC-3 (Ie) | (415 V) 60 °C 12 A(440 V) 60 °C 12 A(500 V) 60 °C 12.5 A(690 V) 60 °C 9 A(380 / 400 V) 60 °C 12 A(220 / 230 / 240 V) 60 °C 12 A |
| Rated Operational Current DC-13 (Ie) | (24 V) 6 A / 144 W(48 V) 2.8 A / 134 W(72 V) 1 A / 72 W(110 V) 0.55 A / 60 W(125 V) 0.55 A / 69 W(220 V) 0.27 A / 60 W(250 V) 0.27 A / 68 W(400 V) 0.15 A / 60 W(500 V) 0.13 A / 65 W(600 V) 0.1 A / 60 W |
| Rated Operational Power AC-3e (Pe) | (415 V) 5.5 kW(440 V) 5.5 kW(500 V) 7.5 kW(690 V) 7.5 kW(380 / 400 V) 5.5 kW(220 / 230 / 240 V) 3 kW |
| Rated Short-time Withstand Current Low Voltage (Icw) | at 40 °C Ambient Temp, in Free Air, from a Cold State 10 s 150 Aat 40 °C Ambient Temp, in Free Air, from a Cold State 15 min 35 Aat 40 °C Ambient Temp, in Free Air, from a Cold State 1 min 60 Aat 40 °C Ambient Temp, in Free Air, from a Cold State 1 s 300 Aat 40 °C Ambient Temp, in Free Air, from a Cold State 30 s 80 Afor 0.1 s 140 Afor 1 s 100 A |
| Terminal Type | Screw Terminals |
| Wire Stripping Length | Auxiliary Circuit 10 mmControl Circuit 10 mmMain Circuit 10 mm |
Classifications
| eClass | V11.0 : 27371003 |
|---|---|
| Object Classification Code | Q |
| ETIM 9 | EC000066 - Power contactor, AC switching |
|---|
Environmental
| Ambient Air Temperature | Close to Contactor Fitted with Thermal O/L Relay -25 ... 60 °CClose to Contactor without Thermal O/L Relay -40 ... 70 °CClose to Contactor for Storage -60 ... +80 °C |
|---|---|
| Conventional Free-air Thermal Current (Ith) | acc. to IEC 60947-4-1, Open Contactors Θ = 40 °C 35 Aacc. to IEC 60947-5-1, Θ = 40 °C 16 A |
| Maximum Operating Altitude Permissible | Without Derating 3000 m |
| Resistance to Vibrations acc. to IEC 60068-2-6 | 5 ... 300 Hz 4 g closed position / 2 g open position |
| WEEE Category | Product Not in WEEE Scope |
| Climatic Withstand | Category B according to IEC 60947-1 Annex Q |
|---|---|
| Degree of Protection | acc. to IEC 60529, IEC 60947-1, EN 60529 Auxiliary Terminals IP20acc. to IEC 60529, IEC 60947-1, EN 60529 Coil Terminals IP20acc. to IEC 60529, IEC 60947-1, EN 60529 Main Terminals IP20 |
| Resistance to Shock acc. to IEC 60068-2-27 | Closed, Shock Direction: A 30 gClosed, Shock Direction: B1 25 gClosed, Shock Direction: B2 15 gClosed, Shock Direction: C1 25 gClosed, Shock Direction: C2 25 gOpen, Shock Direction: A 30 gOpen, Shock Direction: B1 5 gOpen, Shock Direction: B2 15 gOpen, Shock Direction: C1 25 gOpen, Shock Direction: C2 25 g |
| RoHS Information | 2CMT2021-006277 |
Technical UL/CSA
| Connecting Capacity Auxiliary Circuit UL/CSA | Rigid Solid 1/2x 18-14 AWGRigid Stranded 1/2x 18-14 AWG |
|---|---|
| Connecting Capacity Main Circuit UL/CSA | Rigid Solid 1/2x 16-10 AWGRigid Stranded 1/2x 16-10 AWG |
| Full Load Amps Motor Use | (120 V AC) Single Phase 1 A(200 ... 208 V AC) Three Phase 3 A(220 ... 240 V AC) Three Phase 3 A(240 V AC) Single Phase 2 A(440 ... 480 V AC) Three Phase 7-1/2 A(550 ... 600 V AC) Three Phase 10 A |
| Horsepower Rating NEMA | (115 V AC) Single Phase 1 Hp(200 V AC) Three Phase 3 Hp(230 V AC) Single Phase 2 Hp(230 V AC) Three Phase 3 Hp(460 V AC) Three Phase 5 Hp(575 V AC) Three Phase 5 Hp |
| NEMA Size | 0 |
| Tightening Torque UL/CSA | Auxiliary Circuit 11 in·lbControl Circuit 11 in·lbMain Circuit 13 in·lb |
| Connecting Capacity Control Circuit UL/CSA | Rigid Solid 1/2x 18-14 AWGRigid Stranded 1/2x 18-14 AWG |
|---|---|
| Continuous Current Rating NEMA | 18 A |
| General Use Rating UL/CSA | (600 V AC) 28 A |
| Maximum Operating Voltage UL/CSA | Main Circuit 600 V |
| Pilot Duty UL/CSA | A600Q600 |
Ordering
| Minimum Order Quantity | 1 piece |
|---|---|
| Product Main Type | AF12N0 |
| Customs Tariff Number | 85364900 |
|---|
