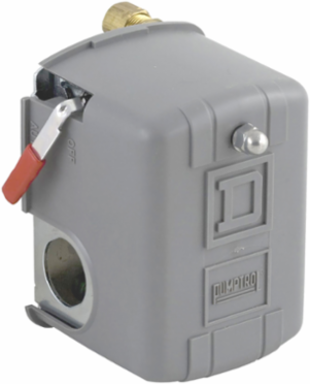

Telemecanique Sensors 9013FHG22J43M1 Square D Pumptrol, air compressor switch 9013FH, fixed differential, Off at 80 PSI, high hp

MPN: 9013FHG22J43M1
UPC: 785901511243
PPN: TES-9013FHG22J43M1
UNSPSC: 39122210

$87.45

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

Square D Pumptrol, air compressor switch 9013FH, fixed differential, Off at 80 PSI, high hp

Documentation & Downloads

Specifications

Key Specifications

Range Of Product	Square D Pumptrol
Pressure Sensor Name	9013FH
Product Specific Application	control small electrically driven air compressors
Electrical Circuit Type	power circuit

Type Of Packing	individual
Value Of Setting	off at 80 psi
Quantity Per Set	1
Pressure Sensor Size	100 psi

Complementary

Pressure Sensor Type	electromechanical pressure switch
Materials In Contact With Fluid	zinc plated steel or equivalent flange \|\| nitrile (Buna-N) or equivalent rubber diaphragm
Terminal Block Type	4 terminals
Short-Circuit Protection	20 A cartridge fuse gG
Pressure Switch Type Of Operation	regulation between 2 thresholds
Maximum Operating Rate	10 cyc/mn
Adjustable Range On Rising Pressure	40-100 psi
Net Weight	1 lb(US)
Fluid Connection Type	0.25 inch NPSF internal UL 508
Electrical Connection	screw-clamp terminals 10 AWG \|\| screw-clamp terminals 5.261 mm²
Controlled Fluid	air -22-257 °F)
Approximate Fixed Differential	20 psi
Mechanical Durability	300000 cycles
Operating Position	any position
Depth	3.76 in
Destruction Pressure	220 psi

Pressure Actuator	diaphragm
Height	3.71 in
Terminals Description Iso N°1	L2-T2 \|\| L1-T1
Repeat Accuracy	+/- 3 %
Factory Modification	maintained manual cut-out lever (AUTO-OFF)
Contacts Type And Composition	2 NC, snap action, DPST-DB, Form YY
Local Display	without
Electrical Durability	100000 cycles 10 cyc/mn
Cable Entry Number	2 0.88 in cable entries with 0.84 in across flats UL 508
[Ui] Rated Insulation Voltage	575 V UL 508
Setting	internal
Scale Type	fixed differential
Material	polypropylene Cover \|\| noryl thermoplastic resin or equivalent Cover
Width	3.1 in
Motor Power Kw	1.5 kW 2 hp)115 V AC, 1 phase \|\| 2.2 kW 3 hp)115 V AC, 3 phase \|\| 2.2 kW 3 hp)230 V AC, 1 phase \|\| 3.7 kW 5 hp)230 V AC, 3 phase \|\| 0.37 kW 0.5 hp)115 V DC \|\| 0.37 kW 0.5 hp)230 V DC

Environment

Product Certifications	CSA file LR25490 \|\| UL listed file E12158
Standards	UL 508 \|\| CE
Ambient Air Temperature For Storage	-33-257 °F
Protective Treatment	none

Ambient Air Temperature For Operation	-33-257 °F
Ip Degree Of Protection	IP20 conforming to IEC 60529
Nema Degree Of Protection	NEMA 1 UL 50
