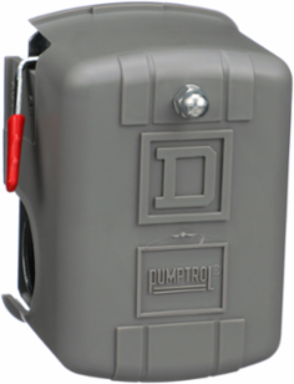

Telemecanique Sensors 9013FHG32J39M1X Square D Pumptrol, air compressor switch 9013FH, fixed differential, Off at 135 PSI, high hp
- MPN: 9013FHG32J39M1X
- UPC: 785901140016
- PPN: TES-9013FHG32J39M1X
- UNSPSC: 39122210
CAD
$82.95
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Square D Pumptrol, air compressor switch 9013FH, fixed differential, Off at 135 PSI, high hp
Documentation & Downloads
Specifications
Key Specifications
- Range Of Product
- Square D Pumptrol
- Pressure Sensor Name
- 9013FH
- Product Specific Application
- control small electrically driven air compressors
- Electrical Circuit Type
- power circuit
Type Of Packingindividual
Value Of Settingoff at 135 psi
Quantity Per Set1
Pressure Sensor Size150 psi
Complementary
- Pressure Sensor Type
- electromechanical pressure switch
- Materials In Contact With Fluid
- zinc plated steel or equivalent flange || nitrile (Buna-N) or equivalent rubber diaphragm
- Terminal Block Type
- 4 terminals
- Short-Circuit Protection
- 20 A cartridge fuse gG
- Pressure Switch Type Of Operation
- regulation between 2 thresholds
- Maximum Operating Rate
- 10 cyc/mn
- Adjustable Range On Rising Pressure
- 70-150 psi
- Net Weight
- 1 lb(US)
- Fluid Connection Type
- 0.25 inch NPSF internal UL 508
- Electrical Connection
- screw-clamp terminals 10 AWG || screw-clamp terminals 5.261 mm²
- Controlled Fluid
- air -22-257 °F)
- Approximate Fixed Differential
- 30 psi
- Mechanical Durability
- 300000 cycles
- Operating Position
- any position
- Depth
- 3.76 in
- Destruction Pressure
- 220 psi
Pressure Actuatordiaphragm
Height3.71 in
Terminals Description Iso N°1L2-T2 || L1-T1
Repeat Accuracy+/- 3 %
Factory Modificationmaintained manual cut-out lever (AUTO-OFF) || 2-way pressure release valve
Contacts Type And Composition2 NC, snap action, DPST-DB, Form YY
Local Displaywithout
Electrical Durability100000 cycles 10 cyc/mn
Cable Entry Number2 0.88 in cable entries with 0.84 in across flats UL 508
[Ui] Rated Insulation Voltage575 V UL 508
Settinginternal
Scale Typefixed differential
Materialpolypropylene Cover || noryl thermoplastic resin or equivalent Cover
Width3.1 in
Motor Power Kw1.5 kW 2 hp)115 V AC, 1 phase || 2.2 kW 3 hp)115 V AC, 3 phase || 2.2 kW 3 hp)230 V AC, 1 phase || 3.7 kW 5 hp)230 V AC, 3 phase || 0.37 kW 0.5 hp)115 V DC || 0.37 kW 0.5 hp)230 V DC
Environment
- Product Certifications
- UL listed file E12158 || CSA file LR25490
- Standards
- CE || UL 508
- Ambient Air Temperature For Storage
- -33-257 °F
- Protective Treatment
- none
Ambient Air Temperature For Operation-33-257 °F
Ip Degree Of ProtectionIP20 conforming to IEC 60529
Nema Degree Of ProtectionNEMA 1 UL 50
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Environmental Disclosure
- ENVPEP111211EN
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Eu Rohs Directive
- Not applicable, out of EU RoHS legal scope
Reach RegulationReference contains Substances of Very High Concern above the threshold
Circularity ProfileENVEOLI111210EN
