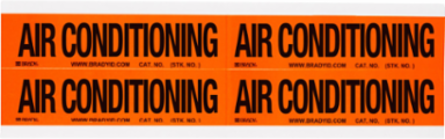

Brady 44247 AIR CONDITIONING Label, 1.125 Inch H x 4.125 Inch W, Self-Adhesive Vinyl Cloth, Card of 4
- MPN: 44247
- UPC: 754473442477
- PPN: BRD-44247
- UNSPSC: 55121606
CAD
$6.29
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Orange ASME-compliant conduit and voltage labels alert employees to potentially dangerous machinery or energized equipment.
Features
- Orange markers meet ASME (ANSI) Standard ZG3.22
- The adhesive and cloth backing offers excellent holding power, yet allow for clean removal and repositioning
- Sticks to any clean, dry surface
- Specially formulated topcoat for excellent print quality
Documentation & Downloads
Specifications
Key Specifications
| Brand Name | Brady® |
|---|---|
| Color | Black on Orange |
| Enables Industry Compliance | ANSI Z53.1-1967; ANSI Z535-2006; OSHA 1910.145 |
| Image or Text | Text Only |
| Mounting Type | Self-Adhesive |
| Primary Noun, Basic Function | Label |
| PSPA Photoluminescence Class | Not Illuminated |
| Reflective Type | Non-Reflective |
| Text Legend | AIR CONDITIONING |
| Adhesive Type | Repositionable Rubber |
| Illumination | Not Illuminated |
| Laminated | Not Laminated |
| Resistance Properties | Abrasion-Resistant; Chemical-Resistant; Corrosion-Resistant; Humidity-Resistant; UV-Resistant; Weather-Resistant |
| Depth (in/ft/yd) | 0.0073 in |
| Dimensions | 1.125 in H x 4.125 in W x 0.0073 in D |
| Dimensions 2 | 1.125 in H x 4.125 in W |
| Height (mm/cm/m) | 28.6 mm |
| Maximum Service Temperature °F | 176 °F |
| Minimum Application Temperature °F | 50 °F |
| Minimum Service Temperature °F | -40 °F |
| Sign Size-General | 1.125 in x 4.125 in |
| Thickness (mm/cm/m) | 0.185 mm |
| Width (mm/cm/m) | 104.78 mm |
| Calculated Sign Shape | Horizontal Rectangle |
|---|---|
| Compatible Surface Types | Low Surface Energy |
| Finish | Semi-gloss |
| Language | English |
| Number of Printed Sides | 1 |
| Printer and Label Applications | Wire & Cable |
| Quantity per Card or Sheet | 4 |
| Shape | Rectangle |
| Trade Name | CleanLift |
| Brady Material Number | B-498 |
| Label Properties | Repositionable Labels |
| Material | Vinyl Cloth |
| SAP B-Number | B-498 |
| Depth (mm/cm/m) | 0.19 mm |
| Dimensions (Metric) | 28.6 mm H x 0.19 mm D |
| Height (in/ft/yd) | 1.125 in |
| Maximum Service Temperature °C | 80 °C |
| Minimum Application Temperature °C | 10 °C |
| Minimum Service Temperature °C | -40 °C |
| Sign Size | 1.125 in H x 4.125 in W x 0.0073 in D |
| Thickness (in/ft/yd) | 0.0073 in |
| Width (in/ft/yd) | 4.125 in |
Regulatory Information
| Contains CA PROP 65 Substance | Yes Contains-Label not req. |
|---|---|
| Contains Heavy Metal(s) | Unavailable |
| EU RoHS Compliance | Not Applicable |
| SDS Safety Data Sheet required | No = MSDS/SDS is not required |
| Contains CA PROP 65 Substance | No |
|---|---|
| DOT Regulated Product | No = not regulated by DOT |
| EU RoHS Compliant | No |
